Description

A legend is displayed when the chart has multiple series, with the Chart Legend tag you can customise the legend with a title, border and location on the chart along with other things. This tag must be nested in the Chart Display tag.

​
Usage

as element:
<chart:legend
       [title="{string}"]
       [align="{string}"]
       [vertical-align="{string}"]
       [layout="{string}"]
       [x="{string}"]
       [y="{string}"]>
</chart:legend>

​
Directive info

  • This directive creates new scope.

​
Parameters

ParamTypeDetails
title (optional)stringThe title of the legend.
align (optional)stringThe horizontal alignment of the legend box within the chart area. Valid values are ‘left’, ‘center’ and ‘right’.
vertical-align (optional)stringThe vertical alignment of the legend box. Valid values are ‘top’, ‘middle’ or ‘bottom’.
layout (optional)stringThe layout of the legend items. Can be one of ‘horizontal’ or ‘vertical’.
x (optional)stringThe x offset of the legend relative to its horizontal alignment ‘align’. Negative x moves it to the left, positive x moves it to the right.
y (optional)stringThe vertical offset of the legend relative to it’s vertical alignment ‘verticalAlign’. Negative y moves it up, positive y moves it down.

​
Example

​
Source

<div ng-controller="ExampleController">
    <h3 id="example_legend">Legend</h3>
    <h4 id="example_legend_legend-on-the-right">Legend on the Right</h4>
    <tk-example>
        <chart:display response="response" title="Files Indexed" subtitle="Per Day">
            <series:facet name="test1" type="column" title="First Pass"></series:facet>
            <series:facet name="test2" type="column" title="Second Pass"></series:facet>
            <chart:legend title="Legend Title"  align="right" vertical-align="top" layout="vertical" y="100"></chart:legend>
        </chart:display>
    </tk-example>
    <tk-code-wrapper>
        <code hljs>
<chart:display response="response" title="Files Indexed" subtitle="Per Day">
    <series:facet name="test1" type="column" title="First Pass"></series:facet>
    <series:facet name="test2" type="column" title="Second Pass"></series:facet>
    <chart:legend title="Legend Title"  align="right" vertical-align="top" layout="vertical" y="100"></chart:legend>
</chart:display>
        </code>
    </tk-code-wrapper>

    <hr/>

    <h4 id="example_legend_legend-on-the-left">Legend on the Left</h4>
    <tk-example>
        <chart:display response="response" title="Files Indexed" subtitle="Per Day">
            <series:facet name="test1" type="column" title="First Pass"></series:facet>
            <series:facet name="test2" type="column" title="Second Pass"></series:facet>
            <chart:legend title="Legend Title"  align="left" vertical-align="top" layout="vertical" y="100"></chart:legend>
            <chart:legend title="Legend Title"  align="left" vertical-align="top" layout="vertical" y="100"></chart:legend>
        </chart:display>
    </tk-example>
    <tk-code-wrapper>
        <code hljs>
<chart:display response="response" title="Files Indexed" subtitle="Per Day">
    <series:facet name="test1" type="column" title="First Pass"></series:facet>
    <series:facet name="test2" type="column" title="Second Pass"></series:facet>
    <chart:legend title="Legend Title"  align="right" vertical-align="top" layout="vertical" y="100"></chart:legend>
</chart:display>
        </code>
    </tk-code-wrapper>

    <hr/>

    <h4 id="example_legend_legend-on-the-bottom">Legend on the Bottom</h4>
    <tk-example>
        <chart:display response="response" title="Files Indexed" subtitle="Per Day">
            <series:facet name="test1" type="column" title="First Pass"></series:facet>
            <series:facet name="test2" type="column" title="Second Pass"></series:facet>
            <chart:legend title="Legend Title"  align="center" vertical-align="bottom" layout="horizontal"</chart:legend>
        </chart:display>
    </tk-example>
    <tk-code-wrapper>
        <code hljs>
<chart:display response="response" title="Files Indexed" subtitle="Per Day">
    <series:facet name="test1" type="column" title="First Pass"></series:facet>
    <series:facet name="test2" type="column" title="Second Pass"></series:facet>
    <chart:legend title="Legend Title"  align="center" vertical-align="bottom" layout="vertical"></chart:legend>
</chart:display>
        </code>
    </tk-code-wrapper>

    <hr/>

    <h4 id="example_legend_adding-a-border">Adding a Border</h4>
    <p>Add an ID or class to the element wrapping your chart and configure the stroke width to add a border and the value rx to modify the border radius.</p>
    <pre>
.chart-with-legend-border .highcharts-legend-box {
    fill: none;
    stroke-width: 1px;
    stroke: black;
    rx:2;
}
    </pre>
    <div class="chart-with-legend-border">
        <tk-example>
            <chart:display response="response" title="Files Indexed" subtitle="Per Day">
                <series:facet name="test1" type="column" title="First Pass"></series:facet>
                <series:facet name="test2" type="column" title="Second Pass"></series:facet>
                <chart:legend title="Legend Title"  align="right" vertical-align="middle" layout="vertical""></chart:legend>
            </chart:display>
        </tk-example>
        <tk-code-wrapper>
            <code hljs>
<chart:display response="response" title="Files Indexed" subtitle="Per Day">
    <series:facet name="test1" type="column" title="First Pass"></series:facet>
    <series:facet name="test2" type="column" title="Second Pass"></series:facet>
    <chart:legend title="Legend Title"  align="right" vertical-align="middle" layout="vertical"></chart:legend>
</chart:display>
            </code>
        </tk-code-wrapper>
    </div>
</div>

.chart-with-legend-border .highcharts-legend-box {
        fill: none;
        stroke-width: 1px;
        stroke: black;
        rx:2;
    }

angular.module('lightning')
.controller('ExampleController', ['$scope','$timeout','ResponseService', function($scope,$timeout, ResponseService) {
            $scope.response = {
                page: 2,
                query: {
                    rpp: 50
                },
                facets: {
                    test1: {
                        filters: [
                            {

                                val: {
                                    dsp: 'Day 1',
                                    act: 'Day 1',

                                },
                                count: 100,

                            },
                            {

                                val: {
                                    dsp: 'Day 2',
                                    act: 'Day 2',
                                },
                                count: 200,
                            }

                        ]
                    },
                    test2: {
                        filters: [
                            {

                                val: {
                                    dsp: 'Day 1',
                                    act: 'Day 1',
                                },
                                count: 10,

                            },
                            {

                                val: {
                                    dsp: 'Day 2',
                                    act: 'Day 2',
                                },
                                count: 20,
                            }

                        ]
                    },
                },
                results: [
                    {
                        result: {
                            fields: {
                                label: 'label1',
                                value: 1
                            }
                        },

                    },
                    {
                        result: {
                            fields: {
                                label: 'label2',
                                value: 2
                            }
                        },

                        hits: {
                            act: ['Hits', 264]
                        }
                    }]
            }

            ResponseService.setResponse('response',$scope.response);
        }]);

​

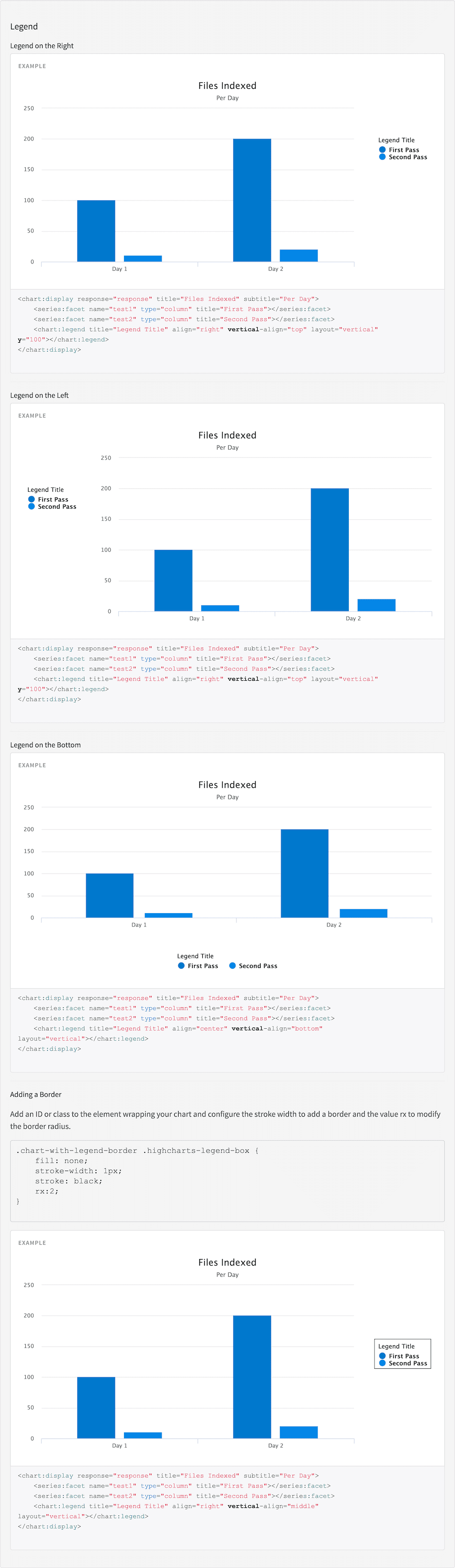

Result

Result
