The Boost with Signals query pipeline stage uses aggregated signals to selectively boost items in the set of search results. Using the main query and the stage configuration parameters, this stage performs a secondary query to the COLLECTION_NAME_signals_aggr collection and returns updated boost weights for the items in the main query’s search results. Items that have received more user interaction also receive higher boost weights. See Recommendation Methods for more information. This stage supports asynchronous processing.
This stage accesses the signals_aggr collection. Before using it, verify that the following permission is set:
GET:/solr/COLLECTION_NAME_signals_aggr/select

​
Configuration overview

The fields below are especially useful to understand when configuring this stage.
ParameterSchema
type
typestring
properties

Number of Recommendations
numRecommendations

Sets the rows query param in the main query as the maximum number of query results which will be boosted by this pipeline stage.

Number of Signals
numSignals

Sets the rows query param in the query that searches the COLLECTION_NAME_signals_aggr collection, so only the specified number of aggregated signals are retrieved and used for boosting. When signals boosting is applied to a query, aggregated signals records are queried from the appropriate _signals_aggr collection to find out the popularity or boost weight for documents which have signals. numSignals limits the number of records to be queried from a _signals_aggr collection and used to calculate this boost.

Aggregation Type
aggrType

A filter to retrieve aggregated signals in the COLLECTION_NAME_signals_aggr collection per each aggregated signal’s aggr_type_s field value.

Solr Field to Boost On
boostId

The document field in the main collection on which to perform boosting. Typically it should use the default field, which is id.

This field corresponds to the Rollup Field/rollupField field. Together, these two fields act like a FIELD:VALUE pair in the query modification for boosting.

Boost Method
boostingMethod

This adds a query parameter to the original query, either “query-param” or “query-parser”. The result is (“query-param” or “query-parser”) + Boost Param (“boost” or bq), as in the examples below:

“query-param” + “boost”, result boost query param
textboost="map(query({!field f='id' v='6239046,13026192'}), 0, 0, 1, 27.1705)" “query-parser” + “boost”, result boost query param textbp_xxx_bbqx="map(query({!field f='id' v='6239046,13026192'}), 0, 0, 1, 27.1705)"
Tip: When Boost Param uses bq, similar logic applies. When Boost Param/boostingParam uses “boost”, it works with both “query-param” and “query-parser”.

Rollup Field
rollupField

Indicates which aggregated signal document field the boost parameter will use for the final boosting. It works in combination with the Solr Field to Boost On/boostId field.

This should be set to the field in the aggregated signal collection that stores the doc list that is aggregated as one record. By default it’s set to doc_id_s, because by default this is used in the click_signal_aggr SQL job.

Rollup Weight Field
rollupWeightField

Indicates the final boost weight used to calculate the new score for docs retrieved by the main query.

Similar to Rollup Field/rollupField above, this should be set to the field in the aggregated signal collection that stores the final weight that was calculated. By default it’s weight_d, because by default this is used in the click_signal_aggr SQL job.

Final Boost Weight Expression
weightExpression

Calculates the final weight using the weight and score retrieved from the COLLECTION_NAME_signals_aggr collection.

The default value is math:log(weight_d + 1) + 10 * math:log(score + 1).

additionalProperties
additionalProperties

{"additionalProperties": true}

​
Solr query parameters

These parameters are used in the Solr Query parameters/queryParams field for retrieving signal aggregation docs from the COLLECTION_NAME_signals_aggr collection. These Solr query params will affect which aggregated signals are used for producing the boosting parameter on the main query.
qf=query_tDefines which field to query. In the default case, the query searches on the query_t field of aggregated signal docs.
pf=query_t^50Boosts docs within the set of retrieved docs using phrase matching.
pf2=query_t^20pf2 is similar to pf; the difference is that pf2 works on bigram phrases.
pf3=query_t^10pf3 is similar to pf; the difference is that pf3 works on trigram phrases.

​
FAQs

If there is fq in the main query, how is it matched with the correct aggregated signal? In this case, you need to use the lw.rec.fq query parameter in the main query. lw.rec.fq can be parsed by the Boost with Signals stage, and therefore the filters specified in it can be added to the Solr query that is retrieving the aggregated signals. For example, if we have filter query param fq=format:CD&fq=name:Latin, this needs to be translated into lw.rec.fq=filters_s:"format:cd $ name:latin". Values must be lowercase. The final main query should be:
http://EXAMPLE_COMPANY.lucidworks.cloud/api/apps/demo_app/query-pipelines/demo_app/collections/demo_app/select?echoParams=all&wt=json&json.nl=arrarr&sort&start=0&q=apple&debug=true&rows=10&lw.rec.fq=filters_s:"format:cd $ name:latin"
Replace EXAMPLE_COMPANY with the name provided by your Lucidworks representative.
Now the Boost with Signals stage will only retrieve aggregated signals that have the same filter query.
If there are multiple fq values (for example, format:cd and name:latin), they are ordered alphabetically as strings and joined with ” "(a" (a with a space on each side). In the example, "format:cd $ name:latin".

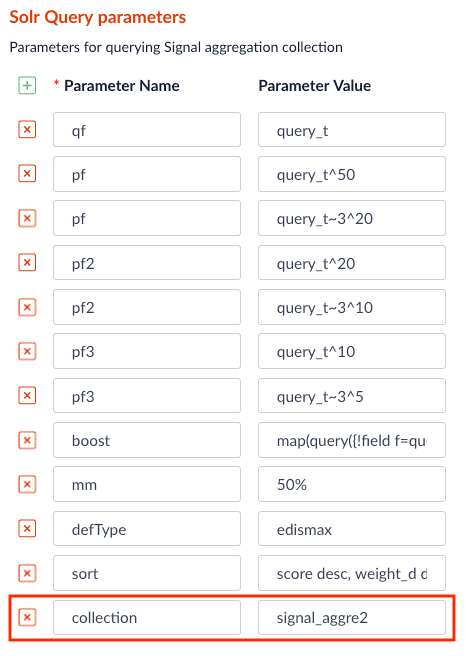

What if my aggregated signals are in a different collection? You can point the Boost with Signals stage to a different signal collection by adding a collection parameter in the Solr Query Parameters section. BwS collection

​
Configuration

When entering configuration values in the UI, use unescaped characters, such as \t for the tab character. When entering configuration values in the API, use escaped characters, such as \\t for the tab character.
