Custom rule actions allow you to define a unique action to take when certain conditions are met. They involve three primary components: a query pipeline, a custom rule type, and a rule that is triggered by conditions defined by the user. To learn use custom rule actions with the API, see Create Custom Rule Actions with the API.
Custom rule actions allow you to define a unique action to take when certain conditions are met. They involve three primary components: a query pipeline, a custom rule type, and a rule that is triggered by conditions defined by the user.This article describes the general workflow for creating a custom rule action. The example assumes the following components are used:
ComponentName
Query pipelinecustom-rule-pipeline
Custom rule typecustom-rule-type
Rulecustom-rule-action
  1. Create a query pipeline, custom-rule-pipeline, that is used to complete the rule action.
  2. Create a custom rule type, custom-rule-type, that uses your query pipeline. Here are some important parameters to include in your POST request.
    Rule properties, included as part of the schema</code, define the values required from the user to create a rule that uses the custom rule type.
    ​
    id
    required
    A unique ID for the custom rule type. The id value must be unique across all apps in Fusion (global namespace).
    Example: custom-rule-type
    ​
    pipeline_id
    required
    The ID of the pipeline that is invoked during rule processing.
    Example: custom-rule-pipeline
    ​
    display_type
    required
    A user-friendly name for the custom rule type.
    Example: My Custom Rule
    ​
    custom_param1
    required
    The ID of the rule’s parameter. This field is used in the API but is not visible in the Rules Editor.
    Example: 1st-rule-parameter
    ​
    type
    required
    The type of user-input.
    Example: string
    ​
    title
    required
    A user-friendly name for the parameter.
    Example: Manufacturer
    ​
    description
    required
    A user-friendly description of what the field is used for. The description value is shown in the field’s tooltip in the Rules Editor.
    Example: The manufacturer of the product to which this rule applies.
    For example:
    curl -u USERNAME:PASSWORD -XPOST -H "Content-type:application/json" \
https://EXAMPLE_COMPANY.b.lucidworks.cloud/api/apps/myFusionApp/custom-rule-types -d '{
"id":"custom-rule-type",
"pipeline_id":"custom-rule-pipeline",
"display_type":"My Custom Rule",
"schema": {
    "type" : "object",
    "properties" : {
    "custom_param1" : {
        "type" : "string",
        "title" : "Manufacturer",
        "description" : "The manufacturer of the product this rule action applies to."
    },
    "custom_param2" : {
        "type": "string",
        "title": "Type",
        "description": "The type of product this rule action applies to."
    }
    }
}
}'

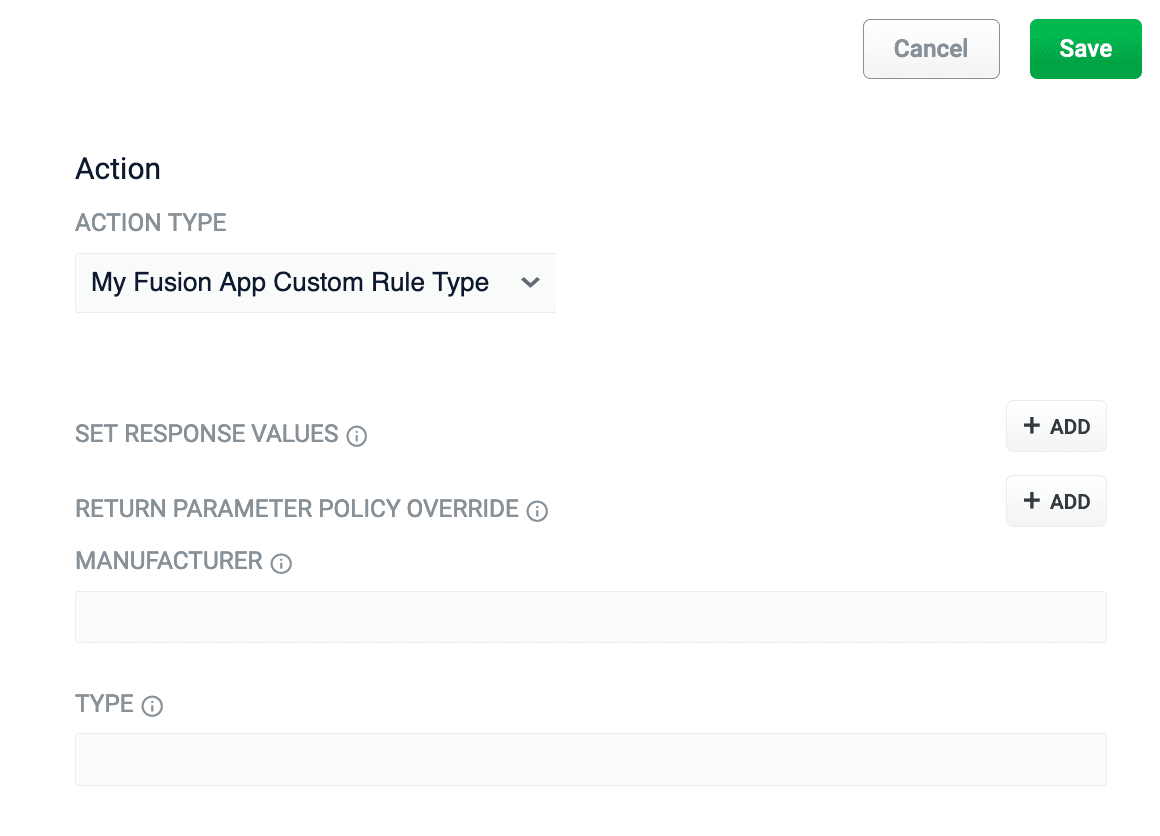

  3. Verify the custom rule type was created by visiting https://EXAMPLE_COMPANY.b.lucidworks.cloud/api/apps/myFusionApp/custom-rule-types. Custom rule types are also available in the Rules Editor: Custom Rule Type in the Rules Editor

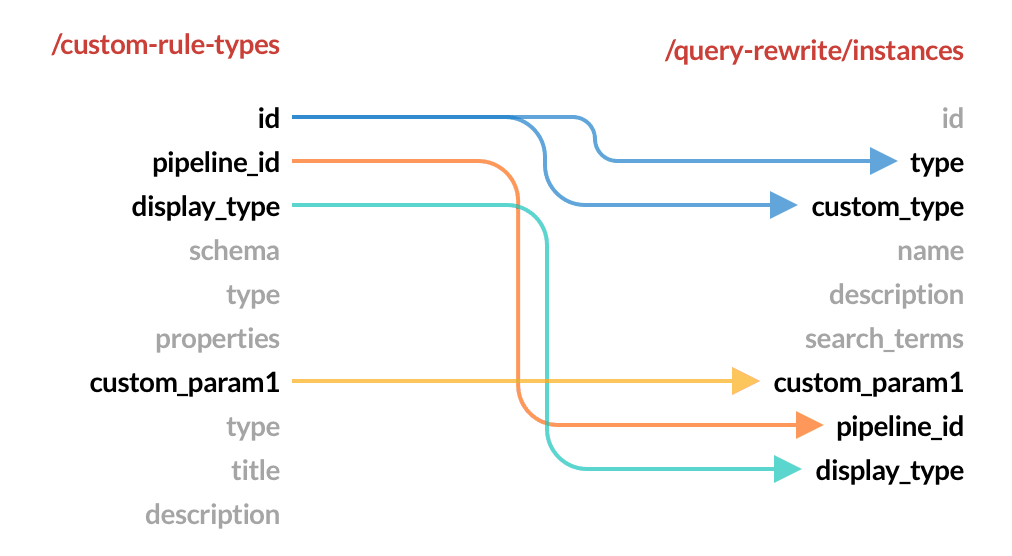

  4. Create a rule, custom-rule-action, that uses your custom rule, custom-rule-type. If you are creating the rule using the Query Rewrite API, the following image depicts which parameters are shared between the custom rule type and the rule: Custom rule type and rule parameters Note that the custom rule type id value is used for the rule’s type and custom_type fields. Remember to assign values to the custom rule properties, custom_param1 and custom_param2.
    curl -u USERNAME:PASSWORD -XPOST -H "Content-type:application/json" \
https://EXAMPLE_COMPANY.b.lucidworks.cloud/api/apps/myFusionApp/query-rewrite/instances -d '{
  "id":"123456",
  "type":"custom-rule-type",
  "custom_type":"custom-rule-type",
  "name":"My Rule",
  "description":"A rule that uses my custom rule, custom-rule-type.",
  "search_terms":["upcoming sale"],
  "custom_param1":"ABC",
  "custom_param2":"XYZ",
  "pipeline_id":"custom-rule-pipeline",
  "display_type":"My Custom Rule"
}'
  5. Verify your rule was created by checking the rule ID, 123456, with the Query Rewrite API: https://EXAMPLE_COMPANY.b.lucidworks.cloud/api/apps/myFusionApp/query-rewrite/instances/123456
  6. Test your custom rule using your normal rule development process.

​
Configuration options

RequiredParameterDescriptionExample
✅idA unique ID for the custom rule type. The id value must be unique across all apps in Managed Fusion (global namespace).custom-rule-type
✅pipeline_idThe ID of the pipeline that is invoked during rule processing.custom-rule-pipeline
✅display_typeA user-friendly name for the custom rule type.My Custom Rule
Rule properties, included as part of the schema, define the values required from the user to create a rule that uses the custom rule type.
RequiredParameterDescriptionExample
✅custom_param1The ID of the rule’s parameter. This field is used in the API but is not visible in the Rules Editor.1st-rule-parameter
✅typeThe type of user-input.string
✅titleA user-friendly name for the parameter.Manufacturer
✅descriptionA user-friendly description of what the field is used for. The description value is shown in the field’s tooltip in the Rules Editor.The manufacturer of the product this rule action applies to.
