    Configure Security Trimming for SharePoint Optimized V2

    You can configure the SharePoint Optimized V2 connector to use security trimming so that query results are filtered based on the roles and permissions assigned to the user.

    To configure security trimming, you’ll need to set up and run a SharePoint Optimized V2 datasource, an LDAP ACLs V2 datasource, and a Graph Security Trimming query stage in the same app and collection.

    When a crawl is run, the SharePoint Optimized V2 and LDAP ACLs V2 datasources must index the content documents and ACL documents to the same collection.

    • ACL documents: Users, Groups, and their Role Assignments.

    • Content documents: The SharePoint objects with metadata and content (Sites, Lists, Items). These documents have _lw_acl_ss fields which determines who can see the docs when searching.

    Set up the SharePoint datasource

    1. Navigate to Indexing > Datasources.

    2. Install the datasource connector if not already installed.

    3. Click Add and select SharePoint Optimized V2.

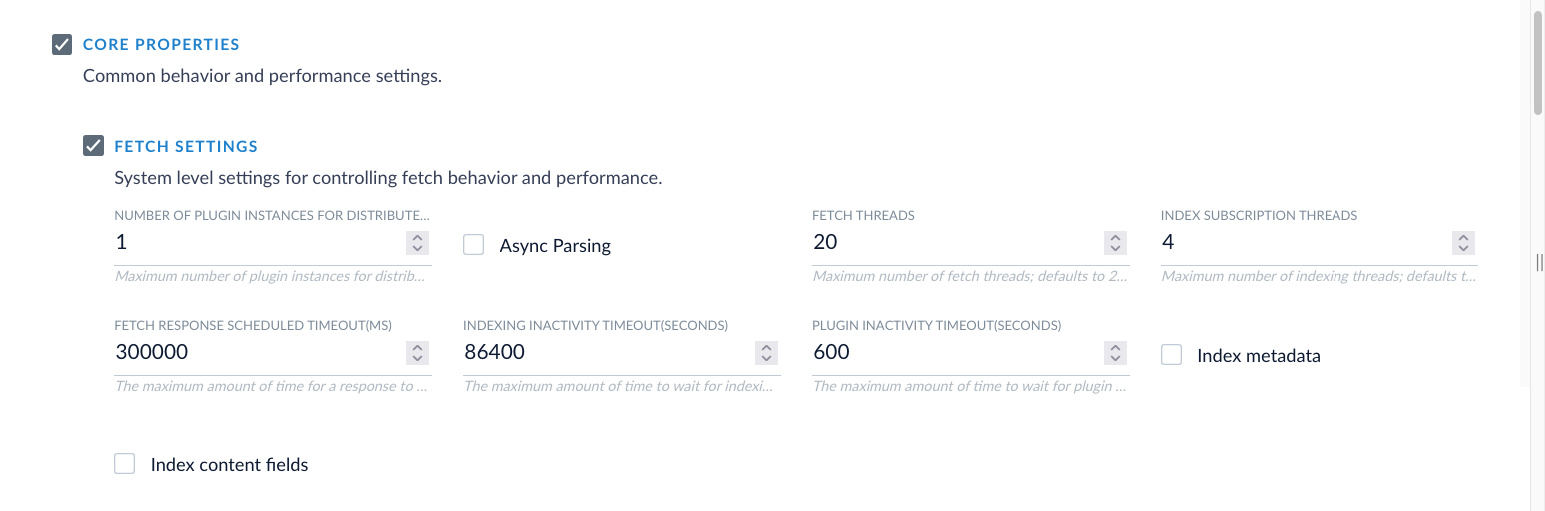

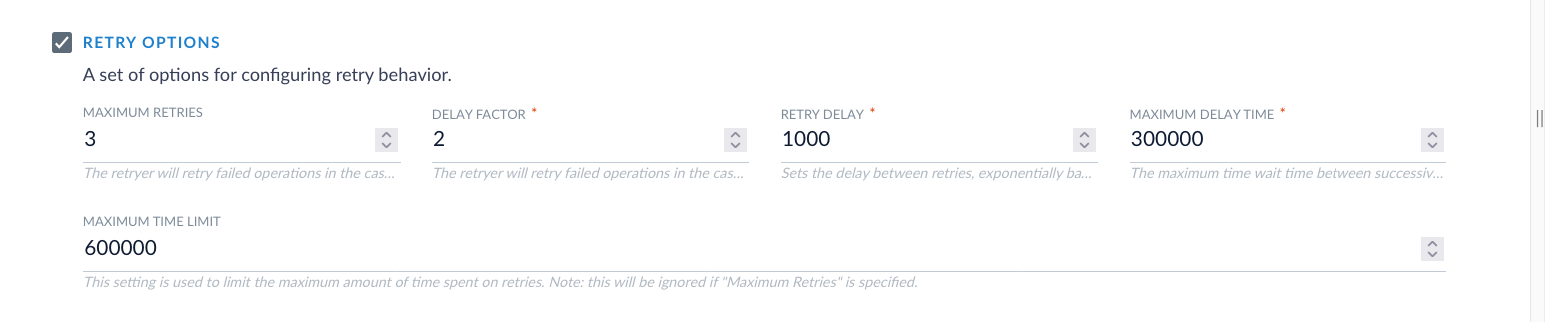

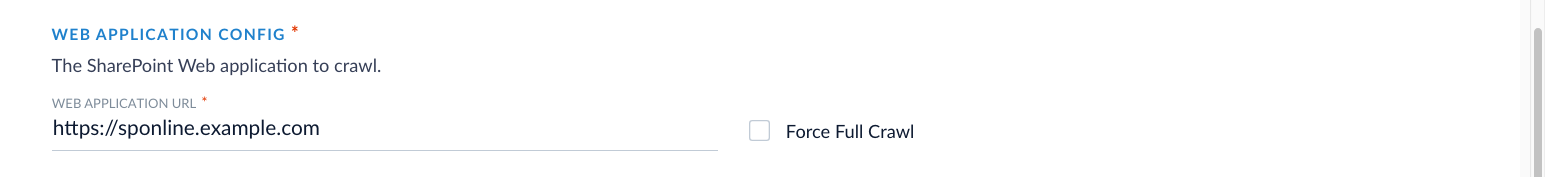

    4. Fill in all required fields.

    5. Configure only one authentication method. Enable NLTM Authentication Settings or SharePoint Online Authentication and configure the fields as explained below.

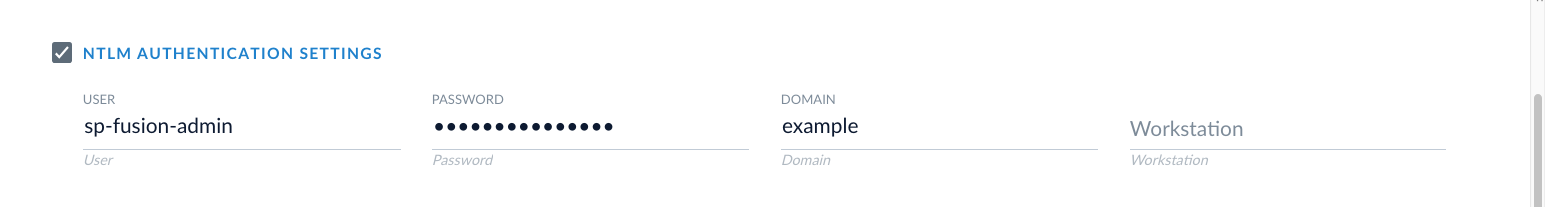

    NTLM Authentication

    This method connects to SharePoint on-premises server instances, such as SharePoint Server 2013, 2016, and 2019. When using this authentication method, the connector will index contentDocuments and the following aclDocuments: sharepointGroups, siteAdmins, roleDefinition, and roleAssignment.

    To use this authentication method, in your SharePoint Optimized V2 datasource, select the NTLM Authentication Settings checkbox and configure the following fields:

    • User

    • Password

    • Domain

    • Workstation

    SharePoint Online Authentication

    These methods connect to SharePoint Online server instances. When using one of these methods, the connector will index contentDocuments and the following aclDocuments: sharepointGroups, siteAdmins, roleDefinition, roleAssignment and sharepointUsers in which loginName ends with onmicrosoft.com.

    Basic

    To use this authentication method, in your SharePoint Optimized V2 datasource, select the SharePoint Online Authentication checkbox and configure the following fields:

    • Sharepoint online account

    • Password

    App only (OAuth protocol)

    To use this authentication method, in your SharePoint Optimized V2 datasource, select the SharePoint Online Authentication checkbox and configure the following fields:

    • Azure AD client ID

    • Azure AD tenant

    • Azure AD Client Secret

    • Azure AD login endpoint (advanced)

    • Azure AD Refresh Token (advanced)

    App only with private key

    To use this authentication method, in your SharePoint Optimized V2 datasource, select the SharePoint Online Authentication checkbox and configure the following fields:

    • Azure AD client ID

    • Azure AD tenant

    • Azure AD login endpoint

    • Azure AD PKCS12 Base64 Keystore

    • Azure AD PKCS12 Keystore Password

    Set up the LDAP datasource

    1. Navigate to Indexing > Datasources.

    2. Install the datasource connector if not already installed.

    3. Click Add and select LDAP and Azure ACLs Connector (V2).

    4. Fill in all required fields.

    5. Configure authentication methods. Enter LDAP login credentials and/or enable Azure AD Properties and configure the fields as explained below.

    LDAP Authentication

    This method connects to an LDAP AD server. When using this method, the connector will index the following aclDocuments: ldapUsers, and ldapGroups.

    To use this authentication method, in your LDAP and Azure ACLs Connector (V2) datasource, configure the following fields:

    • Login User Principal

    • Login Password

    Azure AD Authentication

    This method connects to an Azure AD server. When using this method, the connector will index the following aclDocuments: azureUsers, and azureGroups

    To use this authentication method, in your LDAP and Azure ACLs Connector (V2) datasource, select the Azure AD Properties checkbox and configure the following fields:

    • Azure AD Tenant ID

    • Azure AD Client ID

    • Azure AD Client Secret

    Supported authentication methods for security trimming

    LDAP AD Azure AD

    SharePoint On-Premises

    NTLM Authentication and LDAP Authentication

    NTLM Authentication and Azure AD Authentication

    SharePoint Online

    N/A

    Any SharePoint Online authentication method and Azure AD Authentication

    Configure ACL collection

    The SharePoint Optimized V2 and LDAP ACLs V2 datasources must index the content documents and ACL documents to the same collection. Ensure both datasources use the same value, contentCollection, for the field ACL Collection ID.

    If using SharePoint-Optimized and LDAP-ACLs < v2.0.0

    Update the ACL Collection Id in the datasource configuration.

    The SharePoint-Optimized and LDAP-ACLs datasources must index their content_documents and acl_documents to the same collection. Make sure the property Security → ACL Collection in both datasources have the same value. In both datasources, SharePoint-Optimized and LDAP-ACLs, check the property Security → ACL Collection Id and make sure it points to the same content-collection.

    1. Navigate to Indexing > Datasources.

    2. Open your SharePoint Optimized V2 or LDAP ACLs V2 datasource.

    3. Under Security, update the configuration to use contentCollection as the ACL Collection ID.

      Datasource config for Fusion 5.8 with Graph Security Trimming

      The Security checkbox must be checked for this field to appear.

    4. Save the configuration.

    Repeat this process for all required datasources.

    If using SharePoint-Optimized and LDAP-ACLs >= v2.0.0

    Recreate or update the datasources. If only updated, it is not possible to go back to the configuration of a previous plugin version.

    By default, the LDAP-ACLs and SharePoint-Optimized V2 datasources will index the content_documents and acl_documents to the same collection.

    1. Navigate to Indexing > Datasources.

    2. Open your SharePoint Optimized V2 or LDAP ACLs V2 datasource.

    3. Under Graph Security Filtering Configuration, select Enable security trimming.

    Repeat this process for all required datasources.

    Set up Graph Security Trimming

    A Graph Security Trimming stage is used to pull all nested groups for a user. Then the Solr join query takes those ACL IDs found in the graph query and filters out everything that does not match one of the ACLs.

    1. Navigate to Querying > Query Pipelines.

    2. Open the query pipeline associated with your SharePoint Optimized V2 or LDAP ACLs V2 data.

    3. Click Add a new pipeline stage and select Graph Security Trimming.

    4. Configure the stage with the following settings:

      Field Value

      ACL solr collection

      Your ACL collection

      User ID source

      query_param or header

      User ID key

      The key that contains the User ID

      Join Field

      _lw_acl_ss

      Join method

      topLevelDV

    Test the configuration

    To confirm that security trimming works as configured, run the following test:

    1. First, run the SharePoint Optimized V2 and LDAP ACLs V2 datasources.

    2. Run a series of queries to test user permissions are working as intended:

      1. Run a query using a User ID key with no permissions. You should see no search results.

      2. Run a query using a User ID key that has access to some documents. You should see some search results.

      3. Run a query using a User ID key that has access to all documents. You should see all documents.

        Facet by _lw_document_type_s: contentDocument to see only the SharePoint docs, otherwise aclDocuments will be also shown.
