Aggregations

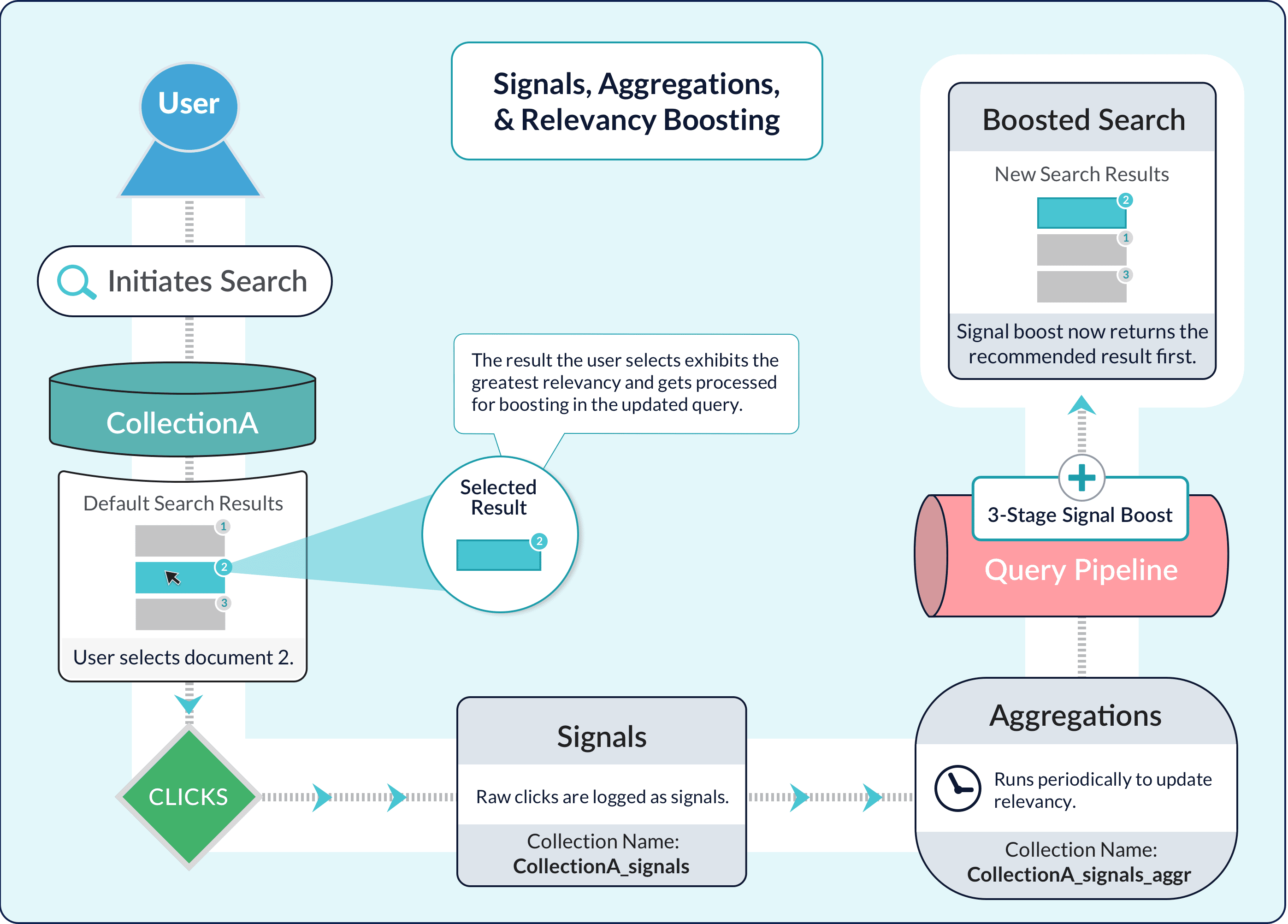

Aggregations compile Signals into a set of summaries that you can use to enrich the search experience through recommendations and boosting. Fusion uses SQL to produce these signal summaries. SQL is a familiar query language that is well suited to data aggregation. Fusion’s SQL Aggregation Engine is powerful and flexible. You can perform a SQL aggregation on a signals collection for a datasource (or on some other collection) through the Fusion UI or using a Fusion API. For more information, see Create and Run a SQL Aggregation Job.

Create and Run a SQL Aggregation Job

You can perform a SQL aggregation on a signals collection for a datasource (or on some other collection), through the Fusion UI or using the Fusion API.

Preliminaries

Before you can create and run a SQL aggregation job, you must create an app, create a collection (or use the default collection for the app), and add a datasource. Before you run a SQL aggregation job, you need signal data. Otherwise, there is nothing to aggregate.

Use the Fusion UI

You can use the Fusion UI to perform a SQL aggregation.

In the Fusion application, navigate to Collections > Jobs.
Click Add and select SQL Aggregation from the dropdown list.
Specify an arbitrary Spark Job ID.
For the Source Collection, select the collection that contains the data to aggregate.
This is not the base collection. For example, to aggregate the signals in experiment_signals, you would select experiment_signals, not experiment.
Click the SQL field to enter aggregation statements. Click Close to close the dialog box.
Select the Advanced option in the top right corner to enter detailed parameters. See SQL Aggregation Jobs for more information.
Enter applicable Signal Types.
Enter the Data Format.
Save the job.

Run a SQL aggregation job

With the app open, navigate to Collections > Jobs.
In the list of jobs, click the job you want to run, and then click Run.
If you do not want to run the job manually, you can also schedule a job.

Use the Fusion API

You can use the Fusion API to perform a SQL aggregation. For example:

curl ":{api-port}/api/spark/configurations/experiment_signals_aggregation"
{
  "type" : "spark",
  "id" : "experiment_click_signals_aggregation",
  "definition" : {
    "id" : "experiment_click_signals_aggregation",
    "sql" : "SELECT SUM(count_i) AS aggr_count_i, query AS query_s, doc_id AS doc_id_s, time_decay(count_i, timestamp_tdt) AS weight_d FROM default_signals WHERE type_s='click' GROUP BY query, doc_id",
    "selectQuery" : "*:*",
    "outputPipeline" : "_system",
    "rollupAggregator" : "SQL",
    "sourceRemove" : false,
    "sourceCatchup" : true,
    "outputRollup" : true,
    "parameters" : [ {
      "key" : "optimizeOutput",
      "value" : "4"
    } ]
  },
  "inputCollection" : "experiment_click_signals",
  "rows" : 10000
}

curl -u USERNAME:PASSWORD -X POST -H "Content-Type: application/json" http://localhost:{api-port}/api/jobs/spark:experiment_click_signals_aggregation/actions -d '{"action": "start"}'

Rollup SQL

Most aggregation jobs run with the catch-up flag set to true, which means that Fusion only computes aggregations for new signals that have arrived since the last time the job was run, and up to and including ref_time, which is usually the run time of the current job. Fusion must “roll up” the newly aggregated rows into any existing aggregated rows in the COLLECTION_NAME_aggr collection. If you are using SQL to do aggregation but have not supplied a custom rollup SQL, Fusion generates a basic rollup SQL script automatically by consulting the schema of the aggregated documents. If your rollup logic is complex, you can provide a custom rollup SQL script. Fusion’s basic rollup is a SUM of numeric types (long, integer, double, and float) and can support time_decay for the weight field. If you are not using time_decay in your weight calculations, then the weight is calculated using weight_d. If you do include time_decay with your weight calculations, then the weight is calculated as a combination of timestamp, halfLife, ref_time, and weight_d. The basic rollup SQL can be grouped by DOC_ID, QUERY, USER_ID, and FILTERS. The last GROUP BY field in the main SQL is used so it will ultimately group any newly aggregated rows with existing rows. This is an example of a rollup query:

SELECT query_s, doc_id_s, time_decay(1, timestamp_tdt, "30 days", ref_time, weight_d)
AS weight_d , SUM(aggr_count_i) AS aggr_count_i
FROM `commerce_signals_aggr` GROUP BY query_s, doc_id_s

Time-range filtering

When Fusion rolls up new data into an aggregation, time-range filtering lets you ensure that Fusion does not aggregate the same data over and over again. Fusion applies a time-range filter when loading rows from Solr, before executing the aggregation SQL statement. In other words, the SQL executes over rows that are already filtered by the appropriate time range for the aggregation job. Notice that the examples Perform the Default SQL Aggregation and Use Different Weights Based on Signal Types do not include a time-range filter. Fusion computes the time-range filter automatically as follows:

If the catch-up flag is set to true, Fusion uses the last time the job was run and ref_time (which you typically set to the current time). This is equivalent to the WHERE clause WHERE time > last_run_time AND time <= ref_time.
If the catch-up flag is not set to true, Fusion uses a filter with ref_time (and no start time). This is equivalent to the WHERE clause WHERE time <= ref_time.

The built-in time logic should suffice for most use cases. You can set the time range filter to TO and specify a WHERE clause filter to achieve more complex time based filtering. Time range in Fusion is equivalent to date range in Solr. Example values for time range:

[* TO NOW] - all past events
[2000-11-01 TO 2020-12-01] – specify by exact date
[* TO 2020-12-01] – from the first data point to the end of the day specified
[2000 TO 2020] - from the start of a year to the end of another year

SQL functions

A Spark SQL aggregation query can use any of the functions provided by Spark SQL. Use these functions to perform complex aggregations or to enrich aggregation results.

Weight aggregated values using a time-decay function

Fusion automatically uses a default time_decay function to compute and apply appropriate weights to aggregation groups during aggregation. Larger weights are assigned to more recent events. This reduces the impact of less-recent signals. Intuitively, older signals (and the user behavior they represent) should count less than newer signals. If the default time_decay function does not meet your needs, you can modify it. The time_decay function is implemented as a User Defined Aggregate Function (UDAF).

Full function signature

This is the UDAF signature of the default time_decay function:

time_decay(count: Long,
           timestamp: Timestamp,
           halfLife: String (calendar interval),
           ref_time: Timestamp,
           weight_d: Double)

Abbreviated function signature and default values Your function call can also use this abbreviated UDAF signature, that omits halfLife, ref_time, and weight_d:

time_decay(count: Long,
           timestamp: Timestamp)

In this case, Fusion fills in these values for the omitted parameters: halfLife = 30 days, ref_time = NOW, and weight_d = 0.1.

Users indexing custom signals with weight_d specified should ensure that the “default” value matches the weight_d parameter used by time_decay.

Matching legacy aggregation

To match the results of legacy aggregation, either use the abbreviated function signature or supply these values for the mentioned parameters: halfLife = 30 days, ref_time = NOW, and weight_d = 0.1.

Parameters

Parameters for time_decay are:

Parameter	Description
`count`	Number of occurrences of the event. Typically, the increment is 1, though there is no reason it could not be some other number. In most cases, you pass `count_i`, which is the event count field used by Fusion signals, as shown in the SQL aggregation examples.
`timestamp`	The date-and-time for the event. This time is the beginning of the interval used to calculate the time-based decay factor.
`halfLife`	Half life for the exponential decay that Fusion calculates. It is some interval of time, for example, `30 days` or `10 minutes`. The `interval` prefix is optional. Fusion treats `30 days` as equivalent to `interval 30 days`.
`ref_time`	Reference time used to compute the age of an event for the time-decay computation. It is usually the time when the aggregation job runs (`NOW`). The reference time is not present in the data; Fusion determines the reference time at runtime. Fusion automatically attaches a `ref_time` column to every row before executing the SQL.
`weight_d`	Initial weight for an event if not specified in the signal, prior to the decay calculation. This value is typically not present in the signal data. If some signals do contain `weight_d` values, this parameter should be set to match the “neutral” value there. You can use SQL to compute `weight_d`; see Use Different Weights Based on Signal Types for an example.

Sample calculation of the age of a signal

This is an example of how Fusion calculates the age of a signal: Imagine a SQL aggregation job that runs at Tuesday, July 11, 2017 1:00:00 AM (1499734800). For a signal with the timestamp Tuesday, July 11, 2017 12:00:00 AM (1499731200), the age of the signal in relation to the reference time is 1 hour.
