Query Pipeline Stages
A query pipeline is made up of a series of query stages that process incoming search queries.
A pipeline stage definition associates a unique ID with a set of properties.
These definitions are registered with the Fusion API service and stored in ZooKeeper for re-use across pipelines and search applications.
Fusion includes a number of specialized query stages as well as a JavaScript stage that allows advanced processing via a JavaScript program.
For instructions, see Use the Pipeline Stage JSON Editor.
The Query Pipeline Stages Reference section contains articles that detail the configuration for each of the Fusion query pipeline stages. The configuration information includes field names and values, as well as examples and other key reference information.
Configuring query pipeline stages
- In the Fusion UI, the Query Workbench provides an environment for configuring the stages in a query pipeline.
- The Query Stages API is used to create, list, update, or delete query stages using JSON. See also the Query Pipelines API.
Pipeline stage JSON editor

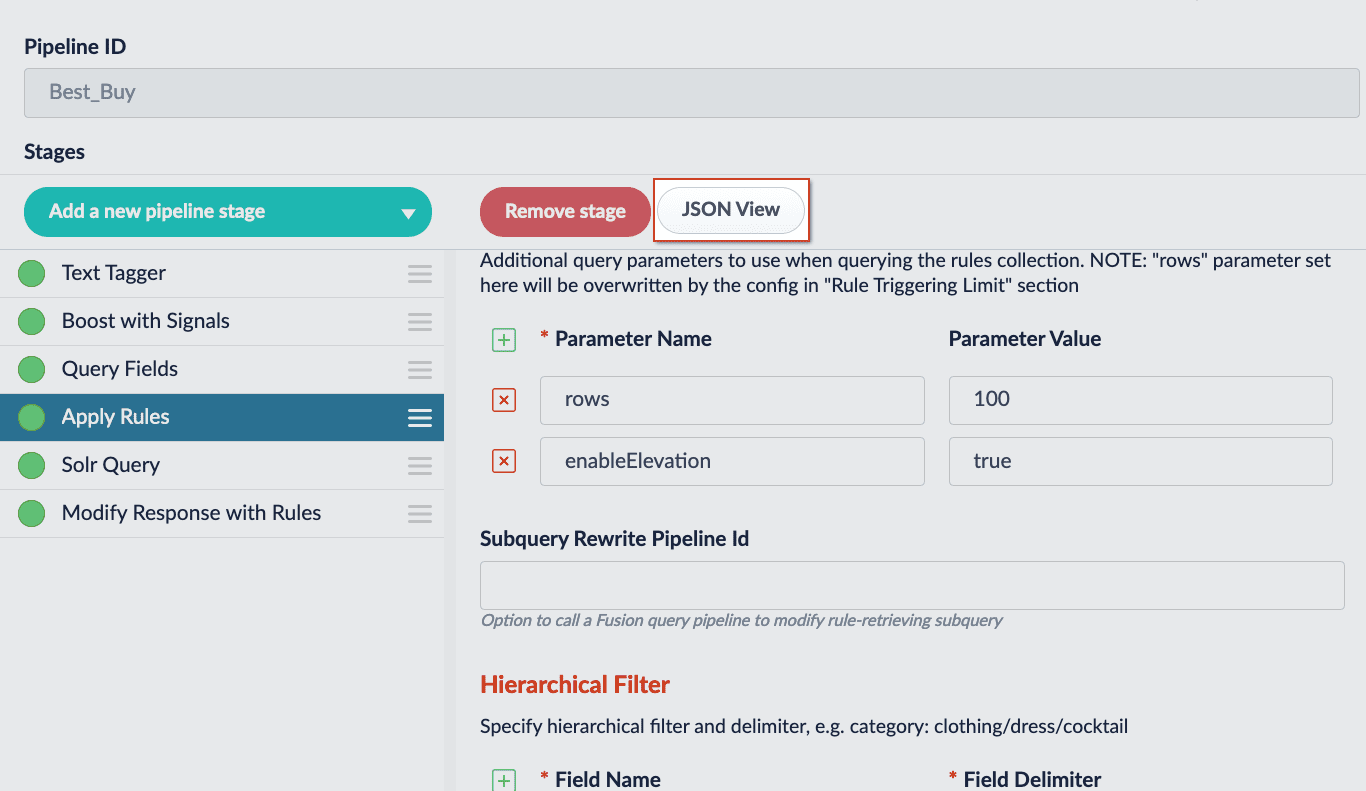

The pipeline stage JSON editor gives the ability to create and copy pipeline stages by pasting JSON objects in the Fusion UI. Only JSON is supported, and JSON validation is included to prevent the user from saving an invalid object. Navigate to your pipelines, select a pipeline stage, and click the JSON View button to open the editor:Users will still need to Save the stage for the changes made in the editor to be saved.
| Elements | Description |
|---|---|
 | Copies the JSON to the clipboard. |
 | Pastes the clipboard into the editor. Only valid JSON is accepted. |
 | Expands the editor to a fullscreen view. |
 | Condenses the editor to a compact view. |
 | Applies the JSON in the editor and updates the stage. The stage must be saved to preserve the changes. |
 | Resets changes made since the last time changes were applied. |
Use the Pipeline Stage JSON Editor
Use the Pipeline Stage JSON Editor
This article will focus on copying the JSON configuration for an existing pipeline stage and creating a new stage with the JSON configuration.
The instructions in this article focus on query pipeline stages. However, the steps are the same for index pipeline stages, which are accessed at **Indexing > Index Pipelines >
<pipeline-name>.- Navigate to Querying > Query Pipelines and select a pipeline.
- Select an existing pipeline stage to view in the editor.
-
Click the JSON View button. The editor will appear:
Existing stages are considered READ-ONLY. They will only have a copy button. - (optional) Click Expand editor to view the editor in fullscreen mode.
- Click the Copy button. The JSON configuration for that stage is copied to your clipboard.
- Click Add a new pipeline stage to create a new stage. Create the same stage type.
- Click the JSON View button.
- Use the Paste button to paste the JSON configuration from your clipboard into the editor. Alternatively, delete the existing JSON configuration and manually paste the new configuration. At this time, you can make changes to the JSON configuration inside the editor.
- Click the Apply button to apply your changes to the stage. Although the changes are immediately shown in the UI, the stage is not saved until you click the Save button.
- Save the stage.
JavaScript selector
Now your pipeline definitions can include your choice of JavaScript engine, either Nashorn or OpenJDK Nashorn. While Nashorn is the default option, it is in the process of being deprecated and will eventually be removed, so it is recommended to use OpenJDK Nashorn when possible. You can select the JavaScript engine in the pipeline views or in the workbenches. Your JavaScript pipeline stages are interpreted by the selected engine.Asynchronous query pipeline processing
Query pipeline processing performance can be improved by enabling asynchronous processing for certain stages that make requests to secondary collections, external databases, and so on. The following stages support asynchronous processing:- Active Directory Security Trimming
- Apply Rules
- Boost with Signals
- JDBC Lookup
- LWAI Prediction
- LWAI Vectorize Query
- Security Trimming
- Solr Subquery
Conditional query processing
Query Pipeline stages are used to modify Request objects and Response objects. Each stage can include a conditional JavaScript expression (thecondition property in its configuration) that can access these objects.
For example, this condition first checks that the property fusion-user-name is specified in the Request object, then checks for a particular value:
Additional resources

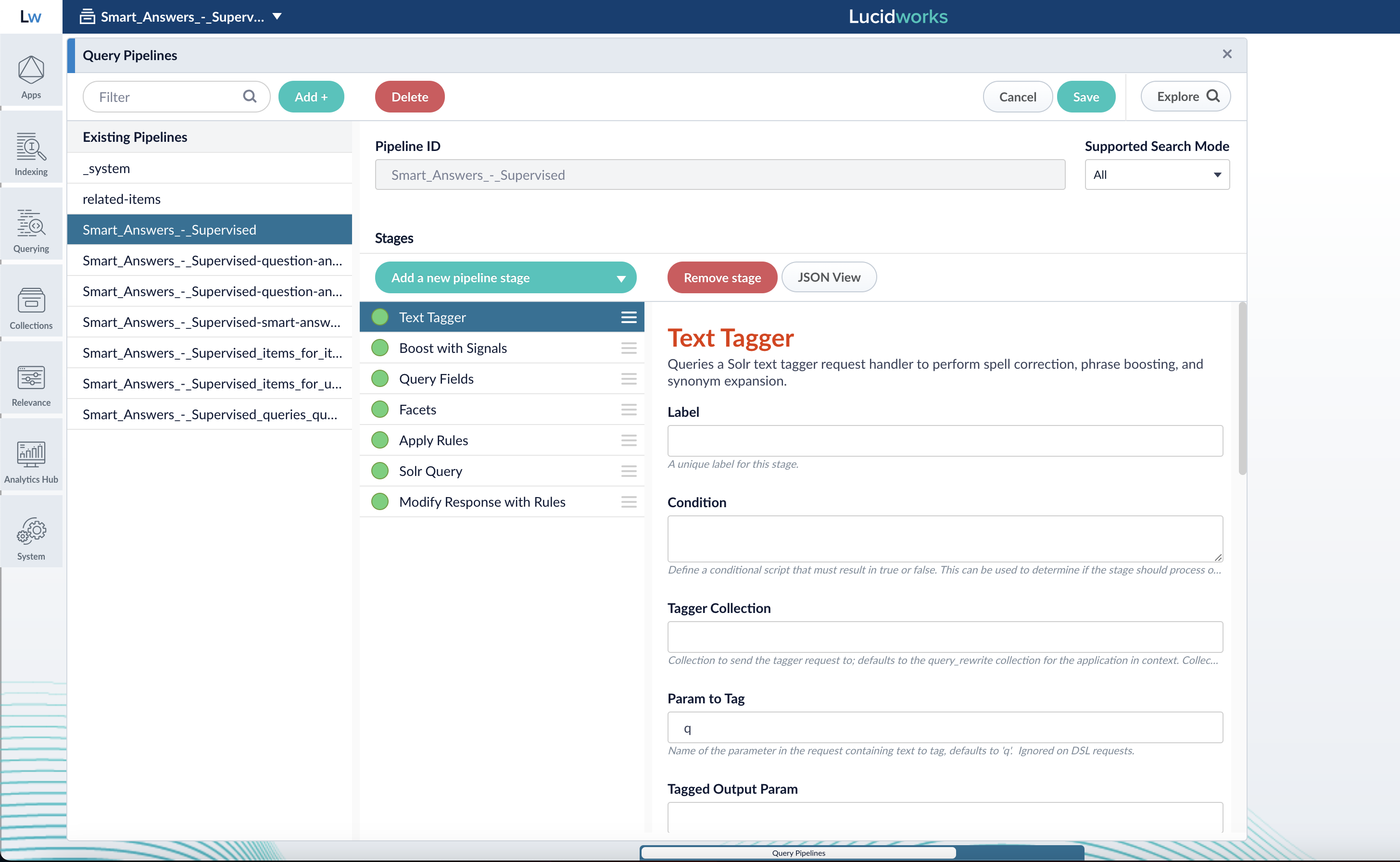

LucidAcademyLucidworks offers free training to help you get started.The Quick Learning for Top 3 Query Pipeline Stages focuses on useful querying stages:
