Blob Types
AresourceType
query parameter can be used to specify the blob type. For example, specify file
when uploading a text or CSV file, like this:
resourceType
is below:
Type | Description |
---|---|
banana | A Banana dashboard |
catalog | An analytics catalog |
driver:jdbc | A JDBC Driver |
file:js-index | A JavaScript file for use with a Managed Javascript index stage |
file:js-query | A JavaScript file for use with a Managed Javascript query stage |
file | Any uploaded file, such as from the Quickstart or the Index Workbench |
unspecified | A blob of unknown type If no resourceType is specified on upload, “other” is assigned by default. |
plugin:index-stage | An index stage plugin |
plugin:query-stage | A query stage plugin |
Upload a JDBC Driver to Fusion
Upload a JDBC Driver to Fusion
The JDBC V2 connector is supported, and fetches documents from a relational database via SQL queries. Under the hood, this connector implements the Solr DataImportHandler (DIH) plugin.Fusion stores JDBC drivers in the blob store. You can upload a driver using the Fusion UI or the Blob Store API.
How to upload a JDBC driver using the Fusion UI
- In the Fusion UI, navigate to System > Blobs.
- Click Add.
-
Select JDBC Driver.
The “New ‘JDBC Driver’ Upload” panel appears.
-
Click Choose File and select the .jar file from your file system.
-
Click Upload.
The new driver’s blob manifest appears.
How to install a JDBC driver using the API
-
Upload the JAR file to Fusion’s blob store using the
/blobs/{id}
endpoint. Specify an arbitrary blob ID, and aresourceType
value ofplugin:connector
, as in this example:Success response:Fusion automatically publishes the event to the cluster, and the listeners perform the driver installation process on each node.If the blob ID is identical to an existing one, the old driver will be uninstalled and the new driver will installed in its place. To get the list of existing blob IDs, run:curl -u USERNAME:PASSWORD https://FUSION_HOST:FUSION_PORT/api/blobs
-
To verify the uploaded driver, run:
Where the
BLOB_ID
is the name specified during upload, such as “mydriver” above. A success response looks like this:
The Blob manager
In addition to the Blob Store API, the Fusion UI provides an interface to the blob store in the Fusion workspace at System > Blobs.- Click Add to upload a new blob.
- Select an uploaded blob to view, replace, or delete it.
- Click Add to upload a new blob.
- Select an uploaded blob to view, replace, or delete it.
Blob editor
The blob editor gives the ability to edit blobs in the Fusion UI in a variety of formats:- CSV
- Java
- JavaScript
- Python
- SCALA
- Typescript
- Plain text

- If the Edit blob button is not available, the blob type cannot be edited with the blob editor.
- For Fusion 5.4.x and later, JavaScript can be edited directly in the Fusion UI.
Elements | Description |
---|---|
![]() | Copies the JSON to the clipboard. |
![]() | Pastes the clipboard into the editor. Only valid JSON is accepted. |
![]() | Expands the editor to a fullscreen view. |
![]() | Condenses the editor to a compact view. |
![]() | Saves the JSON in the editor and updates the blob. |
![]() | Resets changes made since the last time changes were applied. |
Use the Blob Editor
Use the Blob Editor
The blob editor gives the ability to edit blobs in the Fusion UI in a variety of formats:
- CSV
- Java
- JavaScript
- Python
- SCALA
- Typescript
- Plain text
- Navigate to System > Blobs and select a valid blob.
-

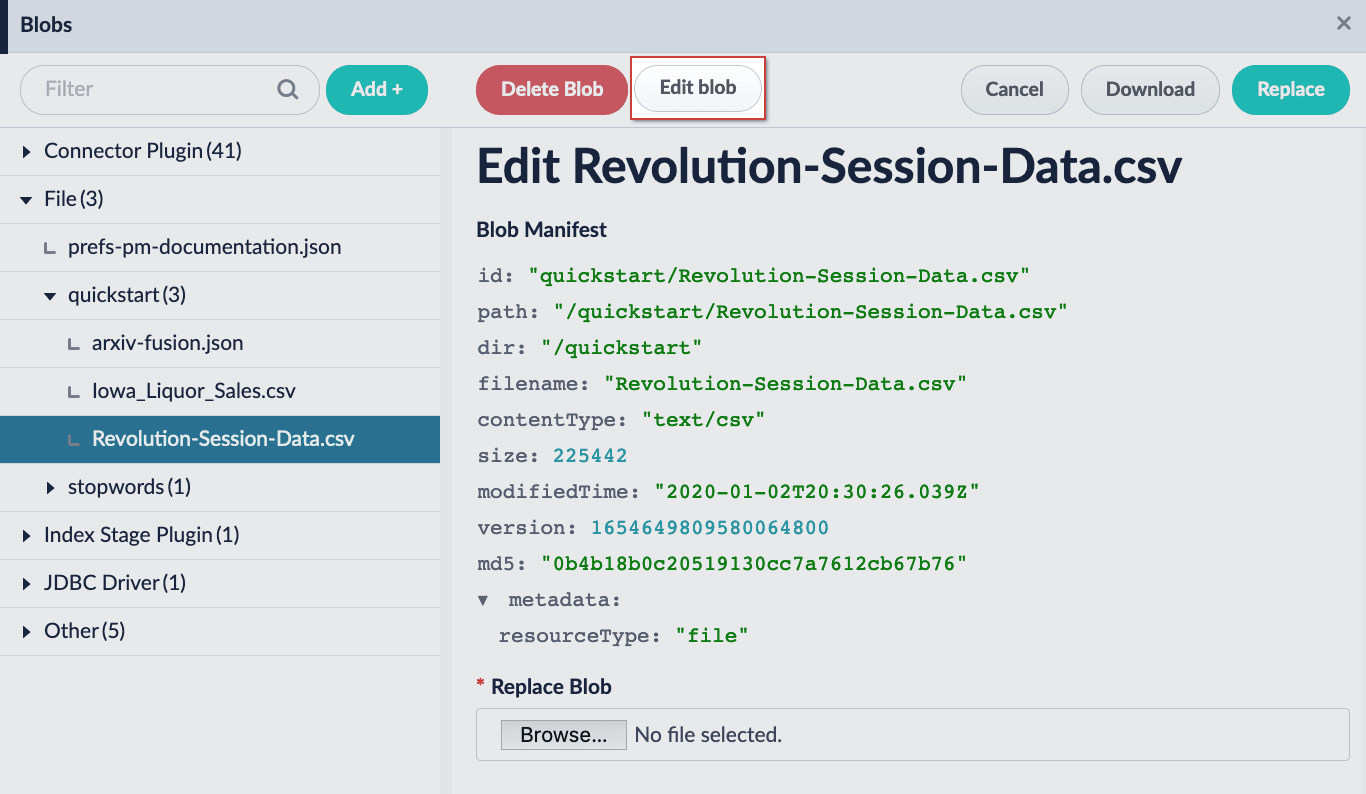

Click the Edit blob button. This button is only available for valid blob types.
The editor appears: - (optional) Click Expand editor to view the editor in fullscreen mode.
- (optional) Click the Copy button to copy the blob details. This can be saved somewhere, if desired.
-
Copy the contents of the new stop words file, and click the Paste button to replace the contents of the blob. Alternatively, delete the existing contents and manually paste the new contents.
- Click the Save button to save your changes.
