Secrets management using Fusion Vault - Lucidworks documentation

This topic describes Fusion Vault, which is a Fusion service that watches labeled Kubernetes secrets and makes them available to Fusion pipelines, jobs, and connectors by logical reference. Secret references are logical names stored and transferred as plain text in pipeline and connector configurations. The same reference name can point to different underlying Kubernetes secrets in the development, staging, and production environments. This enables portable pipeline and connector configurations that do not require modification when moving between environments. Credential values never display in Fusion configurations. These examples illustrate the datasources, index and query pipeline stages, and job settings in Fusion.

Datasources (connector)
Pipeline stages
Jobs

Set Fusion datasource to use a managed secret

Your managed secret is found in the datasource configuration in Crawl Authentication Properties > Basic Authentication > Host.

Kubernetes secrets can be created manually or synchronized from external vault providers using the Kubernetes External Secrets Operator (ESO). Fusion Vault supports query and indexing pipelines and V2 connectors.

The ZooKeeper-based secrets management option is the legacy approach, where credentials are encrypted and embedded directly in pipeline and connector configurations. It is maintained for backward compatibility, and uses V1 connectors.

Benefits of Fusion Vault

Using Fusion Vault for secrets management, your organization can perform the following functions:

Create and store credentials in Kubernetes secrets instead of embedding them directly in a pipeline. Kubernetes secrets can be populated from external providers such as HashiCorp Vault, Amazon Web Services (AWS) Secrets Manager, Google Cloud Platform (GCP) Secret Manager, and Azure Key Vault using ESO. Fusion configurations only store references, not actual values.
Reference credentials by logical name rather than by value. References are stored and exported as plain text, so the same pipeline or connector configuration can be imported into any environment. Each environment can define different underlying Kubernetes secrets behind the same reference name, with no changes to the configuration itself.
When you update a credential in your vault, all related pipelines change automatically without manual pipeline updates or service restarts.
Maintain compliance with strict Kubernetes security policies.

Use cases

This section provides examples of use cases that illustrate how your organization can use Fusion Vault for secrets management.

A data scientist creates a query pipeline that needs to access multiple external services securely. The fields of the pipeline are configured to reference the API and database credentials entered in your organization’s Kubernetes vault. The data scientist does not enter the values of the credentials in the Fusion pipeline. When the pipeline runs, authorization is completed using the credentials in the external vault. In addition, the same secret can be reused in multiple pipelines and stages, and are logged for audit purposes.
A data engineer needs to configure an AWS S3 connector using credentials stored in AWS Secrets Manager. Other backend procedures such as configuring an ESO in the cluster need to be created as well. The data engineer creates an AWS S3 connector in the Fusion Admin UI by selecting the reference names of the credentials, but does not enter the values of the credentials in the Fusion UI. When the connector starts, credentials are pulled from the external vault. Credentials can be updated without reconfiguring the connector, and ESO automatically synchronizes any changes to all instances.

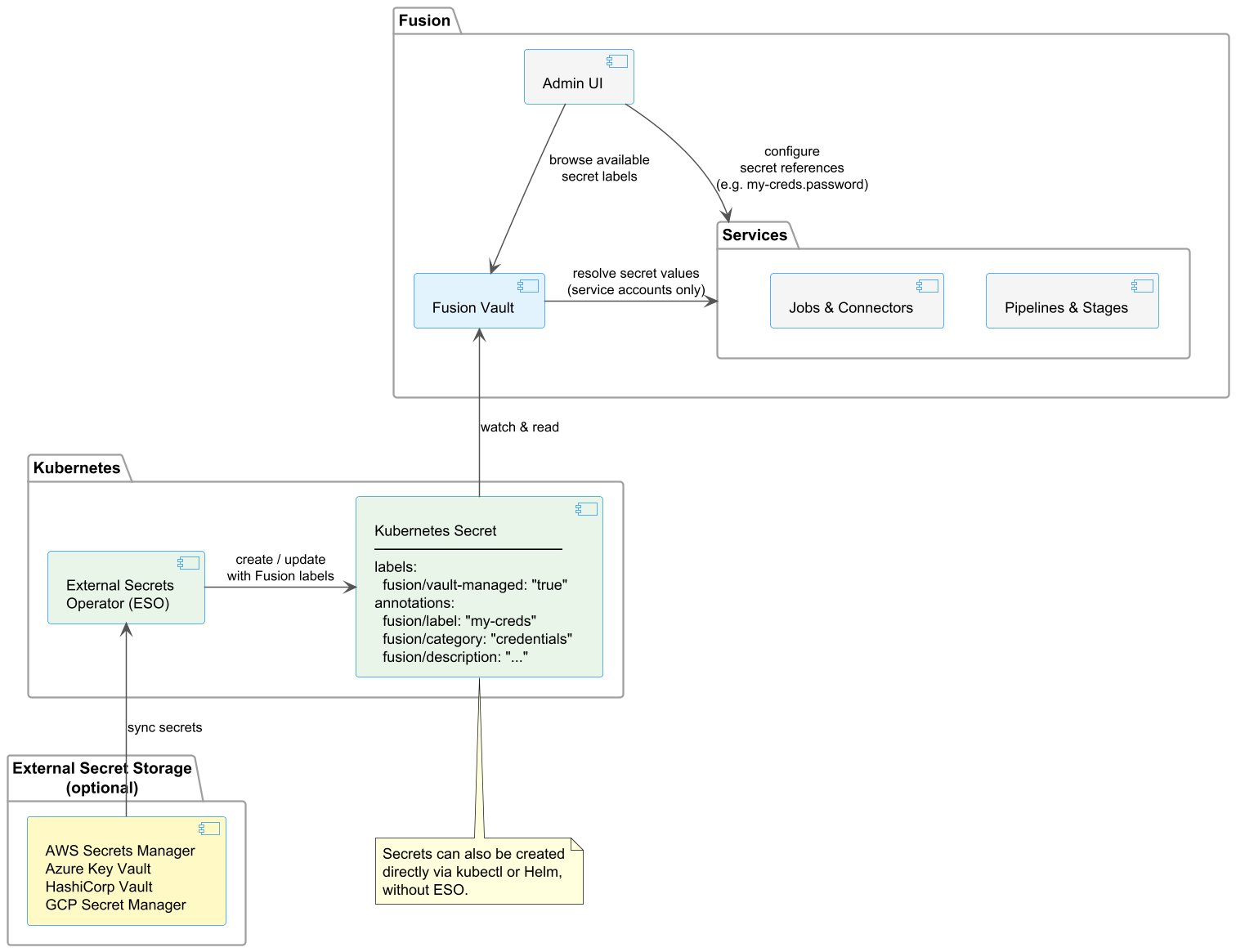

Operational flow

Fusion Vault watches for Kubernetes secrets labeled fusion/vault-managed: "true" and caches their values. The following describes how the components interact:

Fusion Admin UI queries Fusion Vault for the list of available secret labels and presents them in dropdowns when configuring pipelines, jobs, and connectors. Users select a secret reference (for example, my-creds.password), but users never see or enter the actual secret value.
Fusion services (jobs, connectors, pipelines, and stages) store only the logical secret reference in their configuration. At runtime, they resolve the actual value through Fusion Vault using a service account. End users cannot access secret values directly.
Kubernetes secrets are the source of truth. Fusion Vault watches them continuously and updates its cache when they change. Secrets can be created directly using kubectl or Helm, or are synchronized from an external vault provider (AWS Secrets Manager, Azure Key Vault, HashiCorp Vault, GCP Secret Manager) using the optional Kubernetes External Secrets Operator (ESO).

When a Kubernetes secret changes, whether updated manually or synchronized by ESO, Fusion Vault detects the update and automatically provides the new value to Fusion services without manual updates or restarts.

Multi-tier caching ensures Fusion pipelines continue to run even if the Kubernetes API is temporarily unavailable, with automatic resynchronization when connectivity is restored.

Fusion Vault functions

Fusion Vault manages credentials such as database credentials, API keys, cloud storage access keys, and authentication tokens used by pipelines, jobs, and connectors to connect to external services. Fusion Vault does not manage secrets required for Fusion itself to operate, such as service account passwords, TLS certificates, and encryption keys. Those are defined during installation through Helm chart values or Kubernetes secrets and are not affected by this feature.

Configuration

Fusion Vault reads Kubernetes secrets that match its required format. You can create conforming secrets using a method that suits your infrastructure. Create secrets using Helm, a CI/CD pipeline, or any tool capable of producing Kubernetes secrets with the required label and annotations.

Prerequisites

Ensure you have the following prerequisites in place:

A Kubernetes cluster with Fusion installed
Access to the Kubernetes cluster using kubectl commands
Administrative privileges in Fusion for testing and validation
Administrative privileges in your external vault provider (only required if using a synchronizing tool such as ESO)

Kubernetes secret format requirements

For Fusion Vault to pick up a Kubernetes secret, the secret must have the label fusion/vault-managed: "true". Secrets without this label are ignored.The following annotations are optional but recommended:

fusion/label: A human-readable name used when referencing the secret in Fusion. If omitted, the Kubernetes secret name is used in references instead
fusion/description: A description of the secret’s purpose

Example:

apiVersion: v1
kind: Secret
type: Opaque
metadata:
  name: database-creds
  namespace: fusion
  labels:
    fusion/vault-managed: "true"
  annotations:
    fusion/label: "database-creds"
    fusion/description: "PostgreSQL production credentials"
data:
  username: <base64-encoded-value>
  password: <base64-encoded-value>

Any method to create Kubernetes secrets is valid: kubectl, Helm, CI/CD pipelines, or automated synchronizing tools as long as the resulting secret carries the fusion/vault-managed: "true" label.

Create secrets

Choose one of the following approaches to create conforming secrets.

Create secrets directly (kubectl)
Create secrets using ESO

Create Kubernetes secrets yourself using kubectl, Helm, or a CI/CD pipeline.Here is an example of using kubectl to create a Kubernetes secret and apply the required label and optional annotations:

kubectl create secret generic database-creds \
  --from-literal=username=myuser \
  --from-literal=password=mypassword \
  -n fusion
kubectl label secret database-creds fusion/vault-managed=true -n fusion
kubectl annotate secret database-creds \
  fusion/label=database-creds \
  fusion/description="PostgreSQL production credentials" \
  -n fusion

Fusion Vault detects the labeled secret and makes it available for reference in pipelines, jobs, and connectors as database-creds.username and database-creds.password.

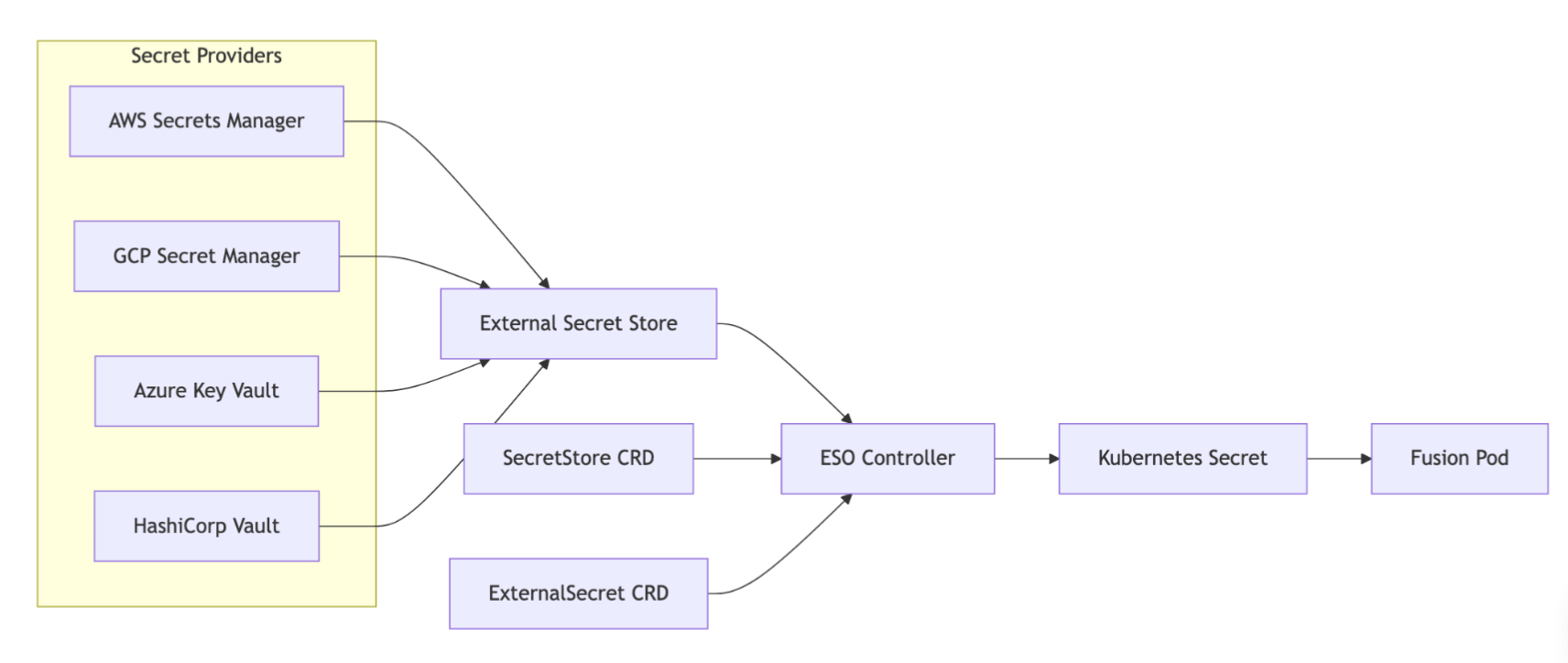

Use any synchronizing tool that creates Kubernetes secrets from an external source and can apply the required label and annotations.ESO is one example because it automatically synchronizes secrets into Kubernetes from external vault providers such as AWS Secrets Manager, Azure Key Vault, HashiCorp Vault, GCP Secret Manager.The following diagram illustrates how ESO syncs secrets from external vault providers into Kubernetes secrets that Fusion Vault then reads.

Refer to the External Secrets Operator installation guide for detailed installation instructions using Helm or kubectl.Best practicesFollow these guidelines to optimize the use of the ESO with Fusion:

Ensure all ExternalSecret resources include the required Fusion label in the template:

spec:
  target:
    template:
      metadata:
        labels:
          fusion/vault-managed: "true"

Add annotations to help organize and identify secrets:

annotations:
  fusion/description: "PostgreSQL production credentials"
  fusion/label: "postgres-prod"

Use the following recommended refresh intervals:
- Production database credentials: 1h
- API keys with regular rotation: 30m
- Development and testing credentials: 4h
Use the creationPolicy: Owner to ensure Kubernetes secrets are removed cleanly when ExternalSecret resources are deleted.

Verify Fusion can see external secrets by using the following command:

kubectl get secrets -l fusion/vault-managed=true -n fusion
curl -H "Authorization: Bearer $TOKEN" \
  https://fusion.example.com/api/vault/labels?type=secret

For detailed information about ESO configuration, security best practices, and operational guidance, see the External Secrets Operator documentation.

Configure SecretStore

A SecretStore is a Kubernetes Custom Resource Definition (CRD) provided by the External Secrets Operator. It is not part of Fusion’s Helm chart. You manage it as a separate infrastructure resource, deployed in the same namespace as Fusion.The SecretStore acts as a configuration bridge that tells ESO which external vault to connect to and how to authenticate to it. Define it as a YAML manifest and apply it to your cluster:

kubectl apply -f secretstore.yaml -n fusion

You can configure multiple SecretStores simultaneously, one per environment (development, staging, production) or one per vault provider.Each ExternalSecret resource references the appropriate store by name.

Google Cloud Secret Manager
AWS Secrets Manager
Azure Key Vault
HashiCorp Vault
Kubernetes Secrets

apiVersion: external-secrets.io/v1beta1
kind: SecretStore
metadata:
    name: gcpsm-secret-store
    namespace: default
spec:
  provider:
    gcpsm:
      projectID: "your-gcp-project"
      auth:
        workloadIdentity:
          clusterLocation: us-central1
          clusterName: your-cluster
          serviceAccountRef:
            name: fusion-secrets-sa

apiVersion: external-secrets.io/v1beta1
kind: SecretStore
metadata:
  name: fusion-aws-secrets
  namespace: fusion
spec:
  provider:
    aws:
      service: SecretsManager
      region: us-west-2
      auth:
        jwt:
          serviceAccountRef:
            name: fusion-external-secrets

apiVersion: external-secrets.io/v1beta1
kind: SecretStore
metadata:
  name: fusion-azure-secrets
  namespace: fusion
spec:
  provider:
    azurekv:
      vaultUrl: "https://your-vault.vault.azure.net"
      authType: WorkloadIdentity
      serviceAccountRef:
        name: fusion-external-secrets

apiVersion: external-secrets.io/v1beta1
kind: SecretStore
metadata:
  name: fusion-vault-secrets
  namespace: fusion
spec:
  provider:
    vault:
      server: "https://vault.example.com"
      path: "secret"
      version: "v2"
      auth:
        kubernetes:
          mountPath: "kubernetes"
          role: "fusion-role"
          serviceAccountRef:
            name: fusion-external-secrets

apiVersion: external-secrets.io/v1beta1
kind: SecretStore
metadata:
  name: kubernetes-secret-store
  namespace: default
spec:
  provider:
    kubernetes:
      server:
        url: "https://kubernetes.default.svc"
      auth:
        serviceAccount:
          name: fusion-secrets-sa

Create secrets in your vault provider

Use your vault provider’s console or command line interface (CLI) to create the actual secret values. Store the vault paths and keys securely for reference when creating ExternalSecret resources.

Google Cloud Console
AWS Console
Azure Portal
HashiCorp Vault

Use the Google Cloud Console or enter the gcloud secrets create command.

Use the AWS Console or enter the aws secretsmanager create-secret command.

Use the Azure Portal or or enter the az keyvault secret set command.

Enter the vault kv put command.

Create ExternalSecret resources

Create ExternalSecret resources that define how secrets synchronize from your vault to Kubernetes.ExternalSecret resources must include the fusion/vault-managed: "true" label in spec.target.template.metadata.labels for Fusion to discover them. This feature requires Kubernetes External Secrets Operator version 0.10 or later.As you create ExternalSecret resources, enter the following labels and annotations to identify the secrets.

The fusion/vault-managed: "true" label is required and enables Fusion discovery of secrets.
The following annotations are recommended, but not required:
- fusion/label: A human-readable identifier used in secret references
- fusion/description: A description of the secret’s purpose

The following tabs are example for credential information:

GCP
AWS S3
Multi-provider configuration

These are example database credentials from GCP.

apiVersion: external-secrets.io/v1beta1
kind: ExternalSecret
metadata:
  name: database-credentials-sync
  namespace: fusion
spec:
  refreshInterval: 1h
  secretStoreRef:
    name: gcpsm-secret-store
    kind: SecretStore
  target:
    name: database-creds
    creationPolicy: Owner
    template:
      metadata:
        labels:
          fusion/vault-managed: "true"
        annotations:
          fusion/description: "PostgreSQL production database credentials"
          fusion/label: "database-creds"
      data:
        username: "{{ .db_username }}"
        password: "{{ .db_password }}"
        host: "{{ .db_host }}"
        port: "{{ .db_port }}"
  data:
  - secretKey: db_username
    remoteRef:
      key: prod/fusion/database
      property: username
  - secretKey: db_password
    remoteRef:
      key: prod/fusion/database
      property: password
  - secretKey: db_host
    remoteRef:
      key: prod/fusion/database
      property: host
  - secretKey: db_port
    remoteRef:
      key: prod/fusion/database
      property: port

These are example AWS S3 credentials from AWS Secrets Manager.

apiVersion: external-secrets.io/v1beta1
kind: ExternalSecret
metadata:
  name: data-lake-sync
  namespace: fusion
spec:
  refreshInterval: 1h
  secretStoreRef:
    name: fusion-aws-secrets
    kind: SecretStore
  target:
    name: data-lake-creds
    creationPolicy: Owner
    template:
      metadata:
        labels:
          fusion/vault-managed: "true"
        annotations:
          fusion/description: "AWS S3 credentials for data lake"
          fusion/label: "data-lake"
      data:
        accessKeyId: "{{ .access_key_id }}"
        secretAccessKey: "{{ .secret_access_key }}"
  data:
  - secretKey: access_key_id
    remoteRef:
      key: prod/fusion/s3-credentials
      property: access_key_id
  - secretKey: secret_access_key
    remoteRef:
      key: prod/fusion/s3-credentials
      property: secret_access_key

This is an example that illustrates how you can source different secrets from different vault providers.

apiVersion: external-secrets.io/v1beta1
kind: ExternalSecret
metadata:
  name: database-creds
  namespace: fusion
spec:
  secretStoreRef:
    name: fusion-gcp-secrets
    kind: SecretStore
  target:
    name: database-credentials
    template:
      metadata:
        labels:
          fusion/vault-managed: "true"
        annotations:
          fusion/label: "database-creds"
  data:
    - secretKey: username
      remoteRef:
        key: fusion-db-credentials
        property: username
    - secretKey: password
      remoteRef:
        key: fusion-db-credentials
        property: password
---
apiVersion: external-secrets.io/v1beta1
kind: ExternalSecret
metadata:
  name: api-creds
  namespace: fusion
spec:
  secretStoreRef:
    name: fusion-aws-secrets
    kind: SecretStore
  target:
    name: api-credentials
    template:
      metadata:
        labels:
          fusion/vault-managed: "true"
        annotations:
          fusion/label: "api-creds"
  data:
    - secretKey: apiKey
      remoteRef:
        key: /fusion/api-credentials
        property: apiKey

This multi-provider approach allows you to perform the following actions:

Source secrets from the most appropriate vault for each use case.
Gradually migrate between vault providers.
Use different providers for different environments (for example, AWS for production, GCP for development).
Maintain existing vault infrastructure while adding Fusion.

Verify secrets are visible to Fusion Vault

Use kubectl to verify that secrets exist in Kubernetes with the required label:

List all Fusion-managed secrets:

kubectl get secrets -l fusion/vault-managed=true -n fusion

View secret details:

kubectl describe secret database-creds -n fusion

Check ExternalSecret status

kubectl describe externalsecret database-credentials-sync -n fusion

Verify labels and annotations

kubectl get secrets -l fusion/vault-managed=true -o jsonpath='{range .items[*]}{.metadata.name}{"\t"}{.metadata.annotations.fusion/label}{"\n"}{end}' -n fusion

Verify that Fusion can access the secrets through the Fusion Vault API by querying the Fusion Vault labels endpoint:
```
curl -H "Authorization: Bearer $TOKEN" \
  https://fusion.example.com/api/vault/labels?type=secret
```

Configure Fusion to reference secrets

Configure Fusion datasources (connectors), pipelines, and jobs to reference the synchronized secrets.In the Fusion UI, preview the fields used for secrets:

Datasources (connectors)

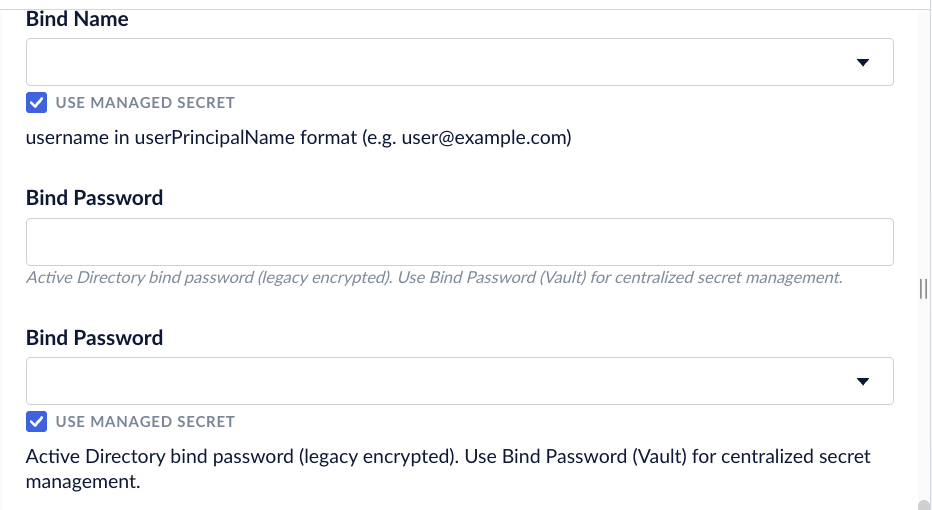

Query pipelines

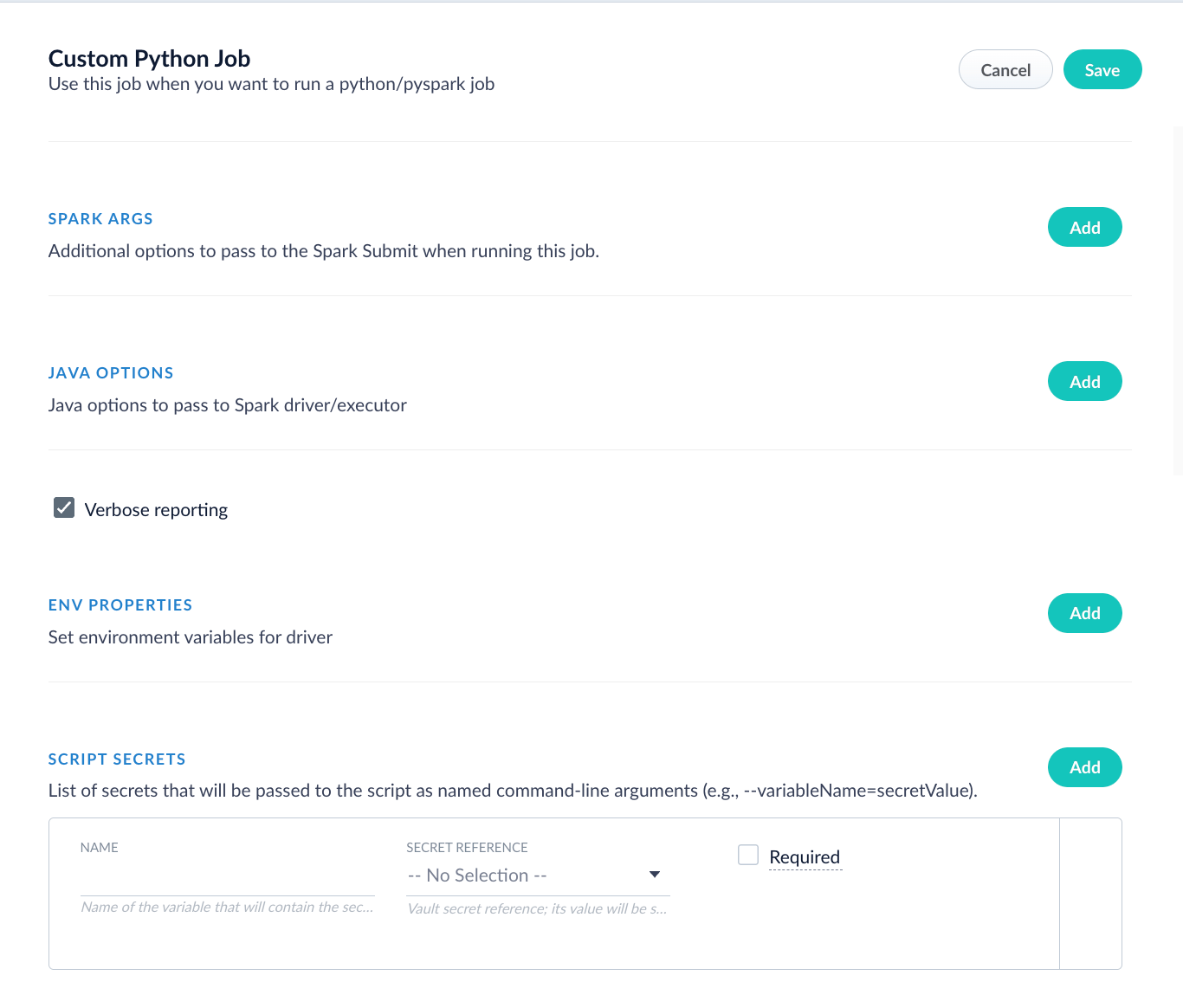

Custom Python job

Set Fusion datasource (connector) to use secret management

Your managed secret is found in the datasource configuration in Crawl Authentication Properties > Basic Authentication > Host.

Test and validate

Test each configured pipeline, job, and connector using these steps:

Run a test indexing job using the configured datasource.
Verify the connector, pipeline, or job can authenticate using the secret reference.
Check Fusion logs for any secret resolution errors.
Monitor Fusion processes to confirm secrets are accessible.

When secret rotation is necessary, update the secret values in your vault provider. ESO automatically synchronizes changes to Kubernetes based on the refreshInterval, and Fusion picks up the new values without manual updates or restarts.

Migrate secrets management from ZooKeeper to Fusion Vault

Migration from ZooKeeper-based secrets management to Fusion Vault secrets management is manual and optional. Each pipeline, job, connector, and datasource must be manually updated to configure where secrets are stored. To migrate, follow the steps described in the Configuration section.

Implement migrations during maintenance windows to avoid service disruption.

If your organization does not migrate, your current secrets management method remains in place. However, secrets management using ZooKeeper will be deprecated at some point in the future.

​Benefits of Fusion Vault

​Use cases

​Operational flow

​Fusion Vault functions

​Configuration

​Migrate secrets management from ZooKeeper to Fusion Vault

Benefits of Fusion Vault

Use cases

Operational flow

Fusion Vault functions

Configuration

Migrate secrets management from ZooKeeper to Fusion Vault
