The Alfresco recipe is used to retrieve data from the Alfresco platform for information management. The configuration details and JSON recipe are added here for convenience, but you can also view them directly at the public REST configuration repository on GitHub.

Alfresco REST Configuration

This documentation describes aspects of the Alfresco REST file configuration alfresco-v1.json, such as the authentication, data fetched, requests configured (endpoints, query params, pagination) and variables needed. Terminology is also provided as a reference.

The alfresco-v1.json is configured to retrieve the initial folders from the root folder -root- (Company Home) and then retrieve the folders, nestedFolders and files.
The following objects are indexed into separate solr document:
- Folders (this also include the ‘Sites’ folder)
- Files

Authentication

The Alfresco REST configuration supports:

Basic Authentication using the username and password from an Alfresco account.

Supported crawl options

The Alfresco REST configuration supports the following crawl options:

Full crawl:
- All the content from the source is fetched.
Re-Crawl:
- Per re-crawl, all the content from the source is retrieved as it were a full-crawl
- Orphan files/folders (deleted in the alfresco source that are not retrieved with a current crawl), will be deleted from the index using the strayContentDeletion feature from connectors-service, which is run when a crawl finishes.

Parser

The default parser is set to _system but can be changed to any parser based on index needs.

Variables used

The Alfresco REST configuration use the following variables, which are created with the rest-connector:

${LW_BATCH_SIZE} - Used with pagination feature. Used to set the maxItems query parameter, which controls the number of entries (folder/files) that are returned in the response.
${LW_INDEX_START} - Used with pagination feature. Used to set the skipCount query parameter, which is used to traverse the pagination.
${LW_PARENT_DATA_KEY} - Used with the Child Request Configurations. In crawl-time, this variable is replaced with the parent object ID value extracted by setting the property ‘Parent Data Key’. Note: The parent object is retrieved with a previous request (parent-request).

Pagination Setup

Pagination by Batch Size is configured per Request. Needs to configure properties: ‘Query Params’, and ‘Pagination By BatchSize’

Configure the ‘Pagination By BatchSize’ properties:

IndexStart: The starting point. It replaces the variable ${LW_INDEX_START}
BatchSize: The number of elements to retrieve. Set to 50 by default. It replaces the variable ${LW_BATCH_SIZE}
Stop Condition Key: Reference the “key” in the response, that needs to be met in order to stop the pagination. For the Alfresco Config, use “list.entries”
Stop Condition Value: Reference the “value” in the response, that needs to be met in order to stop the pagination. For the Alfresco Config, to stop pagination the list of objects retrieved must be empty, then the stop condition should be []

Query Params:

maxItems=${LW_BATCH_SIZE}, where ${LW_BATCH_SIZE} is replaced with the value of property BatchSize. For more information about maxItems, see Alfresco documentation for limiting-result-items
skipCount=${LW_INDEX_START}, where ${LW_INDEX_START} is replaced with the value of property IndexStart to request the first page, then internally replaced with ‘IndexStart + BatchSize’ to request next pages. For more information about skipCount, see Alfresco documentation for skipping-result-items

Endpoints Configuration with Alfresco REST connector

The following table describes the Alfresco REST connector endpoints needed to retrieve the files and folders, and how those are configured with the rest-connector.
Each requests in configured under the property List of Requests Configuration (requestConfigurations in the alfresco-v1.json` file)

Request type	ObjectType	Parent ObjectType	Endpoint	HTTP operation	Query parameters	Description
Root Request	INITIAL_FOLDER		`/alfresco/api/-default-/public/alfresco/versions/1/nodes/-root-/children`	GET	`include=path,properties&skipCount=${LW_INDEX_START}&maxItems=${LW_BATCH_SIZE}&where=(isFolder=true`	Returns the folders from -root- folder (Company Home)
Child Request	FOLDER	INITIAL_FOLDER	`/alfresco/api/-default-/public/alfresco/versions/1/nodes/${LW_PARENT_DATA_KEY}/children`	GET	`include=path,properties&skipCount=${LW_INDEX_START}&maxItems=${LW_BATCH_SIZE}&where=(isFolder=true)`	Return children folders from each parent folder retrieved with the previous request ‘INITIAL_FOLDER’. Internally, the variable `${LW_PARENT_DATA_KEY}` is replaced with the ‘id’ of the parent folder, which is extracted by setting the property `Response Handling → parentDataKey=entry.id`. This request enable the property ‘Recursive Request’.
Child Request	FILE	FOLDER	`/alfresco/api/-default-/public/alfresco/versions/1/nodes/${LW_PARENT_DATA_KEY}/children`	GET	`include=path,properties&skipCount=${LW_INDEX_START}&maxItems=${LW_BATCH_SIZE}&where=(isFile=true)`	Returns children files from each parent folder retrieved with the previous request ‘FOLDER’. Internally, the variable `${LW_PARENT_DATA_KEY}` is replaced with the ‘id’ of the parent folder, which is extracted by setting the property `Response Handling → parentDataKey=entry.id`. This request enable the property ‘Skip Indexation’.
Child Request	FILE_DOWNLOAD	FILE	`/alfresco/api/-default-/public/alfresco/versions/1/nodes/${LW_PARENT_DATA_KEY}/content`	GET		Download the content from each file retrieved with the previous request ‘FILE’. Internally, the variable `${LW_PARENT_DATA_KEY}` is replaced with the ‘id’ of the file, which is extracted by setting the property `Response Handling → parentDataKey=entry.id`

Response Parsing Configuration

Per request, configure the property Response Handling to set up how to parse the response (responseConfiguration in the alfresco-v1.json file)

Plugin Parsing:

This parsing happens by default. The responses are parsed as a JSON Object structure using JsonPath.
Plugin Parsing will happen for requests: INITIAL_FOLDER, FOLDER, FILE
Properties Response Handling → Data ID, Data Path, Parent Data Key can be configured to extract certain information from the Objects parsed (see section Terminology for more information

Binary Parsing:

Enable by setting the property Response Handling → Parse Binary Data (binaryResponse in the alfresco-v1.json` file). Send the whole response to the Fusion Parsers. If disabled (default), the response is parsed as a JSON object
This parsing is configured for request: FILE_DOWNLOAD

Skip Indexation of Objects

When enabled, the response is not indexed. This is useful when objects are requested solely to discover their child objects, without needing to index the parent object itself.

For Alfresco Configuration:
- Given a parent Request FILE, to retrieve a list of files metadata. The request is needed to discover the IDs of files to be downloaded in a following request.
- Given a child Request FILE_DOWNLOAD to download the binary content from the files found previously
- Both request will index two solr-docs that represents the same file: 1) doc the file-metadata only, 2) doc with the file-metadata joined with the file-content.

1) doc the file-metadata only (Request `FILE`)

id: "serverURL_/<parent-request>/fileID"
size_i: 10
author_s: "any"
_lw_rest_object_type_s: "file"

2) doc with the file-metadata joined with the file-content (Request `FILE_DOWNLOAD`)

id: "serverURL_/<child-request>/fileID_binary"
size_i: 10
author_s: "any"
body_s: "body of txt"
_lw_rest_object_type_s: "file_download"

There is no need to index the first solr-doc. To avoid indexing this, the property ‘Skip Indexation’ for the Request FILE is enabled in the ‘alfresco-v1.json’ file.
If needed to avoid indexing another objects, enable the property ‘Skip Indexation’ in the corresponding request configuration.

Limit Documents

Exclude by RegEx:

Allows specifying a list of key-value pairs to exclude objects from indexing:

Key: Reference the field name of the object to exclude. It also accepts JsonPath expressions for navigating through nested object, e.g. objects.nested.path
Value: The value contains a regular expression that will be matched against the field value in the object. If the match succeeds, the entire object will be excluded.

For Alfresco Rest Configuration, this property can be used to exclude objects that matches values from certain fields.

e.g. Exclude objects from the field ‘entry.path.name’. Let’s consider the Alfresco object named “testFolder” belonging to the path /Company Home/Sites/sample1.

{
    "entry": {
        "path": {
            "name": "/Company Home/Sites/sample1",
            "isComplete": true,
            "elements": [...]
        },
        "isFolder": true,
        "isFile": false,
        "name": "testFolder",
        "id": "c2bf6e7d-db3e-4f21-850a-90389fe1d2e1",

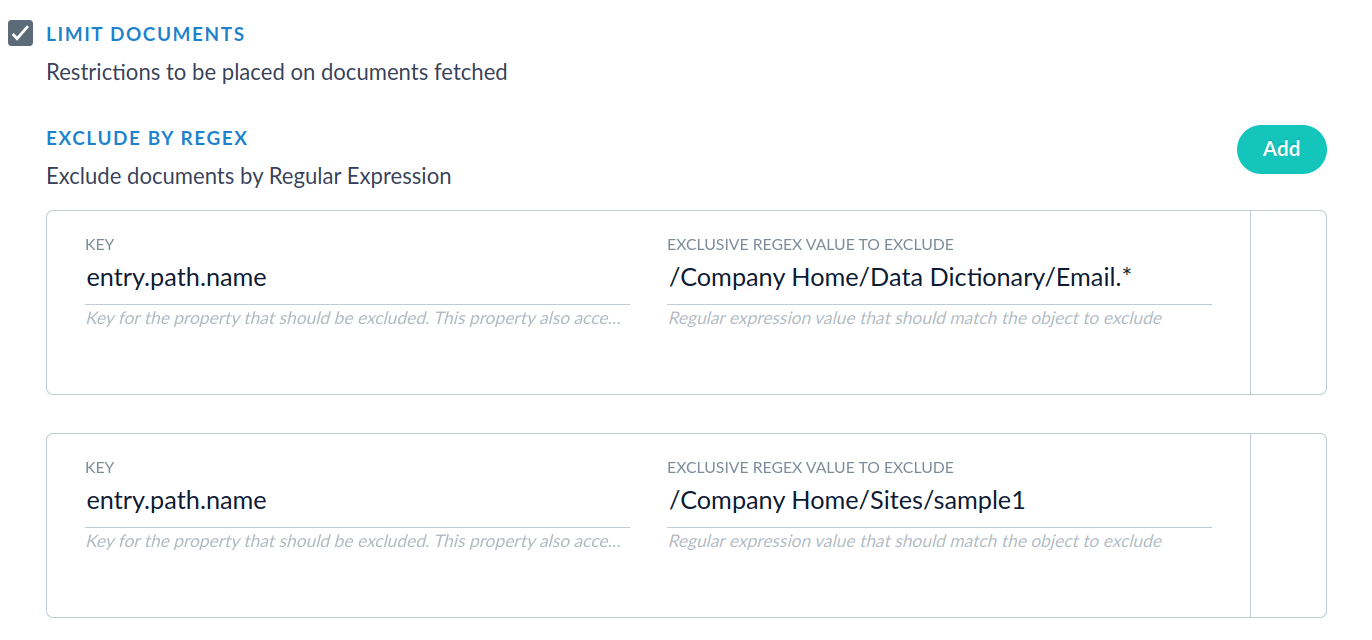

In order to exclude all objects under the path '/Company Home/Sites/sample1', add a key-value pair to the exclusion list:

Key: entry.path.name (points to the field containing the path)
Value: /Company Home/Sites/sample1 (regular expression to match the path)

More key-value pairs can be added using different keys, or the same key ExcludeByRegexSample

Exclude by File Size:

Allows specifying minimum and maximum sizes that will exclude all files that do not meet the requirements.

Key: Reference the field name of the object with the file size. This property also accepts JsonPath expressions e.g. objects.nested.path
Minimum File Size: Used for excluding files with sizes smaller than the configured value.
Maximum File Size: Used for excluding files with sizes larger than the configured value. Set to -1 when there is no limit

For the Alfresco Rest Configuration, this property can be used to exclude files that is above or below a certain size.

For example: Let’s consider this sample snippet from an Alfreco response

"entry": {
    "createdAt": "2011-03-03T10:31:30.596+0000",
    "isFolder": false,
    "isFile": true,
    "createdByUser": {
        "id": "mjackson",
        "displayName": "Mike Jackson"
    },
    "modifiedAt": "2011-03-03T10:31:31.651+0000",
    "modifiedByUser": {
        "id": "mjackson",
        "displayName": "Mike Jackson"
    },
    "name": "Project Objectives.ppt",
    "id": "5515d3e1-bb2a-42ed-833c-52802a367033",
    "nodeType": "cm:content",
    "content": {
        "mimeType": "application/vnd.ms-powerpoint",
        "mimeTypeName": "Microsoft PowerPoint",
        "sizeInBytes": 2117632,
        "encoding": "UTF-8"
    },
    "parentId": "38745585-816a-403f-8005-0a55c0aec813"
}

You can specify the path to the property that has the size, as well as what the minimum and maximum sizes should be. Therefore:

Set key = entry.content.sizeInBytes
Then set minimum, all sizes below the minimum will be excluded.
Then set maximum, all sizes above the maximum will be excluded (Set to -1 when there should be no

Example of configuration based on the above snippet to only index files of 2117632 bytes and below. ExcludeByFileSizeSample

Terminology

The following terms are provided as a reference.

Term	Description
List of Requests Configuration	Configure List of Requests to extract data from the Rest source. Requests are linked hierarchically by using the properties ObjectType and ParentObjectType.
Object Type	The unique name to identify the request.
Parent Object Type	Reference an existent Object Type. Create a parent-child hierarchy, where the current request becomes the child of the specified Parent Object Type. If blank, the current request is considered a Root-Request.
Root Request	The request to retrieve the initial objects.
Child Request	The type of request to retrieve additional information for the root data objects. The child requests will be performed per each root data object.
Recursive Request	When enabled, extra-requests are performed to retrieve nested objects within the objects found with the current-request. For example, the request ObjectType=FOLDER enable this property, then extra-request is made per Folder found to retrieve NestedFolders. This process will continue until no more NestedFolders are found.
Skip Indexation	When enabled, the response is not indexed. Useful when requests of objects are needed only to discover child-objects, without need to index the object itself.
Response Handling	The responseConfiguration Defines the mapping between the response and data objects to be indexed.
Data Path	The path to access a specific data object within a response. For example, to access a list of elements named with key `objects`, the DataPath would be `objects`. If not provided, the entire response body will be indexed. This property accepts JsonPath expressions e.g. `objects`, `objects[*]`, or `list.entries` to extract the list of alfresco objects.
Data ID	The identifier key for the data objects extracted with ‘Data Path’. This value will be used to build the solr-document’s ID. If not provided, a random UUID will be used. This property accepts JsonPath expressions, e.g. `entry.id` to extract the ID of the alfresco file/folder
Parent Data Key	Only configure with Child Requests. Set the ‘key’ to extract the ID of the root/parent response, which value is used to replace the `${LW_PARENT_DATA_KEY}` variable in the child request configuration (endpoint, query params or body). For example, /alfresco/api/-default-/public/alfresco/versions/1/nodes/`${LW_PARENT_DATA_KEY}`/content
Parse Binary Data	Enable to send the whole response to the Fusion Parsers. If enabled, properties `Data Path, Data ID` will be ignored and pagination will not happen.

Recipe

{
  "parserId": "_system",
  "coreProperties": {},
  "id": "rest-alfresco",
  "type": "lucidworks.rest",
  "properties": {
    "serviceURL": "https://{add alfresco url}",
    "authenticationMode": {
      "basicAuth": {
        "password": "xXx-Redacted-xXx",
        "user": "{add username here!!!}"
      }
    },
    "requestConfigurations": [
      {
        "request": {
          "recursiveRequest": false,
          "linkRequest": {
            "objectType": "INITIAL_FOLDER"
          },
          "requestConfiguration": {
            "endpoint": "/alfresco/api/-default-/public/alfresco/versions/1/nodes/-root-/children",
            "pagination": {
              "paginationByBatchSize": {
                "paginationStopConditionValue": "[]",
                "paginationStopConditionKey": "list.entries",
                "batchSize": 50,
                "indexStart": 0
              }
            },
            "httpMethod": "GET",
            "queries": [
              {
                "queryKey": "include",
                "queryValue": "path,properties"
              },
              {
                "queryKey": "where",
                "queryValue": "(isFolder=true)"
              },
              {
                "queryKey": "skipCount",
                "queryValue": "${LW_INDEX_START}"
              },
              {
                "queryKey": "maxItems",
                "queryValue": "${LW_BATCH_SIZE}"
              }
            ]
          },
          "responseConfiguration": {
            "dataId": "entry.id",
            "binaryResponse": false,
            "dataPath": "list.entries",
            "parentIdKey": ""
          }
        }
      },
      {
        "request": {
          "recursiveRequest": true,
          "linkRequest": {
            "parentObjectType": "INITIAL_FOLDER",
            "objectType": "FOLDER"
          },
          "requestConfiguration": {
            "endpoint": "/alfresco/api/-default-/public/alfresco/versions/1/nodes/${LW_PARENT_DATA_KEY}/children",
            "pagination": {
              "paginationByBatchSize": {
                "paginationStopConditionValue": "[]",
                "paginationStopConditionKey": "list.entries",
                "batchSize": 50,
                "indexStart": 0
              }
            },
            "httpMethod": "GET",
            "queries": [
              {
                "queryKey": "include",
                "queryValue": "path,properties"
              },
              {
                "queryKey": "where",
                "queryValue": "(isFolder=true)"
              },
              {
                "queryKey": "skipCount",
                "queryValue": "${LW_INDEX_START}"
              },
              {
                "queryKey": "maxItems",
                "queryValue": "${LW_BATCH_SIZE}"
              }
            ]
          },
          "responseConfiguration": {
            "dataId": "entry.id",
            "binaryResponse": false,
            "dataPath": "list.entries",
            "parentIdKey": "entry.id"
          }
        }
      },
      {
        "request": {
          "recursiveRequest": false,
          "linkRequest": {
            "parentObjectType": "FOLDER",
            "objectType": "FILE"
          },
          "requestConfiguration": {
            "endpoint": "/alfresco/api/-default-/public/alfresco/versions/1/nodes/${LW_PARENT_DATA_KEY}/children",
            "pagination": {
              "paginationByBatchSize": {
                "paginationStopConditionValue": "[]",
                "paginationStopConditionKey": "list.entries",
                "batchSize": 50,
                "indexStart": 0
              }
            },
            "httpMethod": "GET",
            "queries": [
              {
                "queryKey": "where",
                "queryValue": "(isFile=true)"
              },
              {
                "queryKey": "include",
                "queryValue": "path,properties"
              },
              {
                "queryKey": "skipCount",
                "queryValue": "${LW_INDEX_START}"
              },
              {
                "queryKey": "maxItems",
                "queryValue": "${LW_BATCH_SIZE}"
              }
            ]
          },
          "skipIndexation": true,
          "responseConfiguration": {
            "dataId": "entry.id",
            "binaryResponse": false,
            "dataPath": "list.entries",
            "parentIdKey": "entry.id"
          }
        }
      },
      {
        "request": {
          "recursiveRequest": false,
          "linkRequest": {
            "parentObjectType": "FILE",
            "objectType": "FILE_DOWNLOAD"
          },
          "requestConfiguration": {
            "endpoint": "/alfresco/api/-default-/public/alfresco/versions/1/nodes/${LW_PARENT_DATA_KEY}/content",
            "httpMethod": "GET"
          },
          "responseConfiguration": {
            "binaryResponse": true,
            "parentIdKey": "entry.id"
          }
        }
      }
    ],
    "serviceEndpoints": [],
    "collection": "{add collection name here}"
  },
  "pipeline": "{add pipeline name here}",
  "connector": "lucidworks.rest"
}
