Signals API

Table of Contents

UI components required to implement the Signals API
Example user flow and signal events
Additional signal information
- Facet refinement and query signal generation

The Signals API and the embed token feature can be used instead of the signals beacon to collect query, click, cart-add, and purchase signals. When the signals are collected, you can use the insights and analytics in Analytics Studio to help refine your site and improve customer interactions. Visit signals are not currently used and are scheduled to be deprecated.

While the Javascript signals beacon functionality is versatile and configurable, your organization may need to use the Signals API and embed features instead. For example, your organization may use a mobile app that cannot accept Javascript, have security configuration differences, or already use another framework for sending signals.

To use the Signals API and embeds to collect signals, your engineering team must add the appropriate information to the backend codebase on your site. Examples of the fields that need to be added include anonymous visitor ID and session ID values for each customer interaction. The Signals API specification details each signal request.

View the API specification

To view the Signals API specification in a separate window, click:

View API specification

UI components required to implement the Signals API

Two values you need to use the Signals API are the signal store ID and embed token. This section provides the steps in the necessary order to create and obtain those values from the UI.

1. Create a signal store

Sign in to Lucidworks Platform.
In the navigation bar, select the workspace that will access the signals store.
Click Analytics Studio.

Signals store

Click Create New.

Create a signals store

In the Name field, enter a unique user-defined for the signals store.
In the Region field, select the geographical area for the signal store.

This selection cannot be changed. If you need a signal store in a different region, you need to create another signal store with the other region specified.
Click Create.

2. Generate and copy the embed token to your codebase

To generate the embed token, complete the following steps:

Sign in to Lucidworks Platform, click Analytics Studio and then click the signal store.
Click Integrations > Signals Using Embed Token.

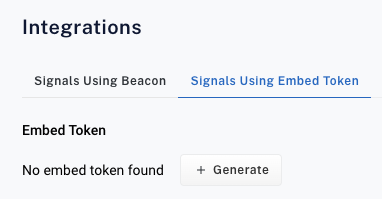

If you haven’t configured embeds for this signal store, the "No embed token found" message displays.
Click Generate. It may take a few moments to generate the token.

The generated embed token for the signal store is permanent and cannot be changed.

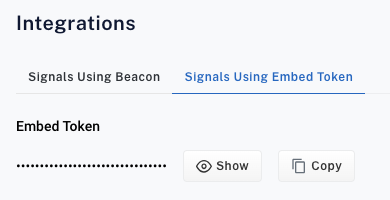

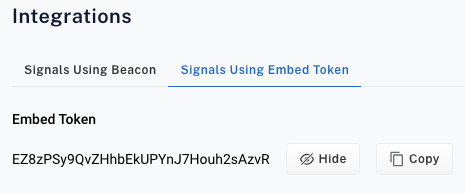

In the Embed Token section, click Copy and then paste the token into your codebase. To view the token, click Show or click Hide to prevent it from displaying.

The embed token also displays in asterisks in the Authorization header line of all of the cURL examples. When you copy and then paste the cURL example, the value of the embed token displays instead of the asterisks.

For example:
```
	--header 'Authorization: Embed ********************************'
```
```
	--header 'Authorization: Embed EZ8zPSy9QvZHhbEkUPYnJ7Houh2sAzvR'
```

3. Obtain the signal store ID

To obtain the signal store ID, complete the following steps:

Sign in to Lucidworks Platform, click Analytics Studio and then click the signal store.
Click Integrations > Signals Using Embed Token.

The signal store ID displays in first line of all of the cURL examples. Copy that ID to paste into your codebase.

For example:

curl 'https://SIGNAL_STORE_ID.applications.lucidworks.com/retail/signals/query'

curl 'https://abcd2fd2-de42-4bb3-a8e4-1cc7e116r231.applications.lucidworks.com/retail/signals/query'

4. Copy or create code to collect signals

Lucidworks provides cURL command examples for the query, click, cart-add, and purchase signals that you can copy into your backend codebase and modify based on the language you use, such as Java, C#, Python, or Nodejs.

View API requests in different languages

To view the Signals API specification in a separate window, click:

View API specification

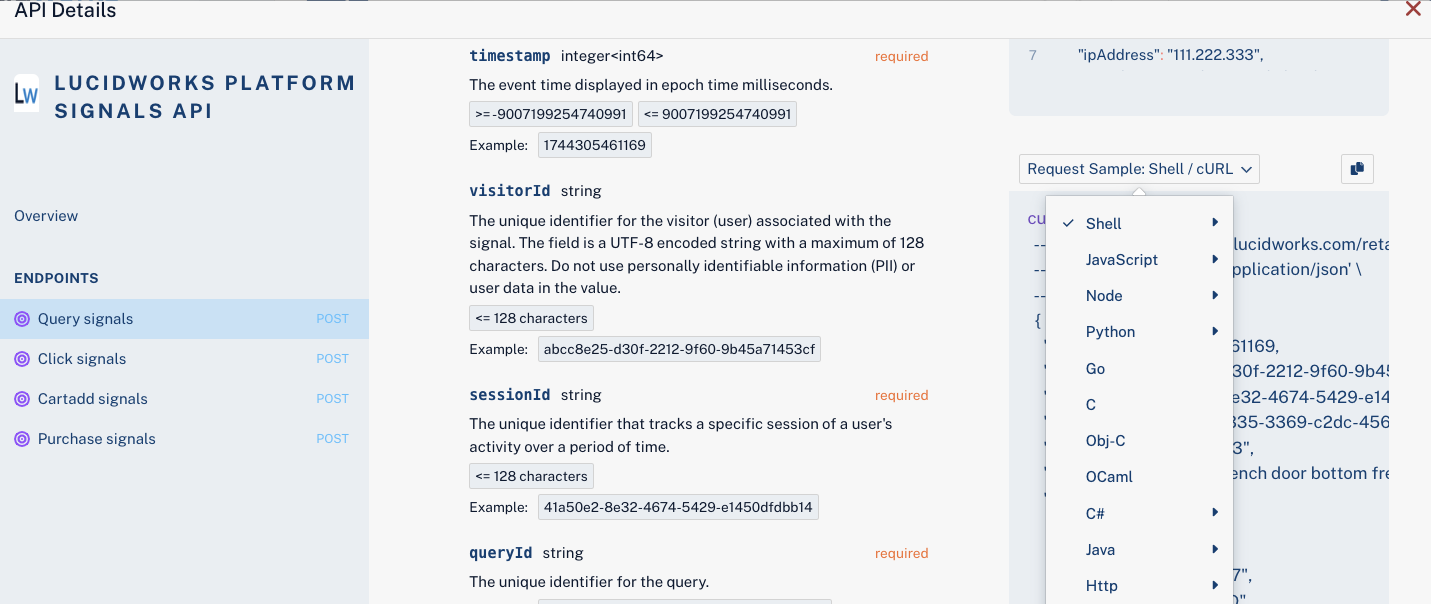

The Signals API specification lets you view and copy API requests in different languages.

API specification language selection

To copy cURL command examples you can paste into your site codebase, complete the following steps:

Navigate to Analytics Studio and select the signal store.
Click Integrations > Signals Using Embed Token.
Click Copy to copy the cURL command example for the signal you want to add to your codebase.
Paste the command in your codebase and modify based on your organizational needs. If you choose not to use the examples Lucidworks provides, enter code into your codebase manually.

Example user flow and signal events

This section provides a typical user interaction flow for browsing and purchasing a product by describing the required API signals and UUID generation necessary for event tracking.

You can program your site to generate UUIDs using any standards-compliant method. Each signal depends on proper UUID generation and tracking. Consistent IDs are necessary for signal integrity and accurate metrics for analytics.

To successfully create signals and ensure complete signal tracking, your site must generate and persist the following UUIDs:

visitorId and sessionId are required in every signal (query, click, cartadd, and purchase) to identify the user and session.
queryId is required in every signal (query, click, cartadd, and purchase) to identify the query, including refinements like facet selection.
searchTerms is required in the query signal to return results.
cartId is required in the cartadd and purchase signals for cart activity and must be replaced with a different UUID for each new user cartadd signal.
orderId is optional, and is used on the purchase_complete signal and identifies an actual purchase as opposed to an attempted purchase.

As part of the code you add to your site, you need to implement UUID generation and determine how to store these values and all other parameters. For example, visitorId is typically stored in localStorage to persist across sessions, and sessionId is usually stored in sessionStorage to reset between sessions.

Other parameters are detailed in the Signals API specification.

Sample user interaction flow

The following example provides typical interactions when a customer searches for and purchases a refrigerator.

1. Site entry and ID generation

When a user visits your site, the site must generate the visitorId and sessionId universal unique identifiers (UUIDs).

2. Search query and initial query signal

When the user searches for “silver french door bottom freezer refrigerator,” your site must generate a new queryId UUID and send a query signal.

curl --request POST \
  --url https://SIGNAL_STORE_ID.applications.lucidworks.com/retail/signals/query \
  --header 'Content-Type: application/json' \
  --data '[
  {
    "timestamp": 1744305461169,
    "visitorId": "abcc8e25-d30f-2212-9f60-9b45a71453cf",
    "sessionId": "41a50e2-8e32-4674-5429-e1450dfdbb14",
    "queryId": "2a97fc33-3335-3369-c2dc-456b775eb90f",
    "ipAddress": "111.222.333",
    "searchTerms": "silver french door bottom freezer refrigerator",
    "productDetails": [
      {
        "product": {
          "productId": "1234567",
          "currencyCode": "USD",
          "price": 2592,
          "title": "Silver french door bottom freezer 27.4 cu ft refrigerator",
          "imageuri": "https://example.com/images/refrigerators/silver/bottomfreezer/1234567.jpg"
        },
        "quantity": 0
      }
    ],
    "sourceId": "string",
    "uri": "https://example.com/refrigerators/silver/bottomfreezer"
  }
]'

3. Product click and click signal

When the user clicks a product, your site must generate a click signal that uses the same queryId generated in the query request that returned the results on which the user clicks.

curl --request POST \
  --url https://SIGNAL_STORE_ID.applications.lucidworks.com/retail/signals/click \
  --header 'Content-Type: application/json' \
  --data '[
  {
    "timestamp": 1744305461169,
    "visitorId": "abcc8e25-d30f-2212-9f60-9b45a71453cf",
    "sessionId": "41a50e2-8e32-4674-5429-e1450dfdbb14",
    "queryId": "2a97fc33-3335-3369-c2dc-456b775eb90f",
    "ipAddress": "111.222.333",
    "productDetails": [
      {
        "product": {
          "productId": "1234567",
          "currencyCode": "USD",
          "price": 2592,
          "title": "Silver french door bottom freezer 27.4 cu ft refrigerator",
          "imageuri": "https://example.com/images/refrigerators/silver/bottomfreezer/1234567.jpg"
        },
        "quantity": 0
      }
    ],
    "sourceId": "string",
    "uri": "https://example.com/refrigerators/silver/bottomfreezer",
    "selectedPosition": 0
  }
]'

4. Cart addition and cart-add signal

When the user adds the product to their cart, your site must generate a cartId and send a cart-add signal.

curl --request POST \
  --url https://SIGNAL_STORE_ID.applications.lucidworks.com/retail/signals/cartadd \
  --header 'Content-Type: application/json' \
  --data '[
  {
    "timestamp": 1744305461169,
    "visitorId": "abcc8e25-d30f-2212-9f60-9b45a71453cf",
    "sessionId": "41a50e2-8e32-4674-5429-e1450dfdbb14",
    "queryId": "2a97fc33-3335-3369-c2dc-456b775eb90f",
    "ipAddress": "111.222.333",
    "productDetails": [
      {
        "product": {
          "productId": "1234567",
          "currencyCode": "USD",
          "price": 2592,
          "title": "Silver french door bottom freezer 27.4 cu ft refrigerator",
          "imageuri": "https://example.com/images/refrigerators/silver/bottomfreezer/1234567.jpg"
        },
        "quantity": 0
      }
    ],
    "sourceId": "string",
    "uri": "https://example.com/refrigerators/silver/bottomfreezer",
    "cartId": "7f626d8c-4176-4f55-b17d-e89531e92ef7"
  }
]'

5. Purchase and purchase signal

When the user completes the purchase, your site can generate an optional orderId along with the purchase signal using the cartId from the cart-add signal. After the purchase, the site must replace that cartId with a new UUID for the next cart-add signal.

curl --request POST \
  --url https://SIGNAL_STORE_ID.applications.lucidworks.com/retail/signals/purchase \
  --header 'Content-Type: application/json' \
  --data '[
  {
    "timestamp": 1744305461169,
    "visitorId": "abcc8e25-d30f-2212-9f60-9b45a71453cf",
    "sessionId": "41a50e2-8e32-4674-5429-e1450dfdbb14",
    "queryId": "2a97fc33-3335-3369-c2dc-456b775eb90f",
    "ipAddress": "111.222.333",
    "productDetails": [
      {
        "product": {
          "productId": "1234567",
          "currencyCode": "USD",
          "price": 2592,
          "title": "Silver french door bottom freezer 27.4 cu ft refrigerator",
          "imageuri": "https://example.com/images/refrigerators/silver/bottomfreezer/1234567.jpg"
        },
        "quantity": 0
      }
    ],
    "sourceId": "string",
    "uri": "https://example.com/refrigerators/silver/bottomfreezer",
    "cartId": "7f626d8c-4176-4f55-b17d-e89531e92ef7",
    "orderId": "6a678f11d-2265-4d01-a4ed-6e9875bfbda2",
    "revenue": 2592
  }
]'

Additional signal information

When the user applies a facet, for example, the query parameter of "?facet=appliances", the signals beacon considers it to be a new query. Your site must determine if you want to generate a new queryId UUID and new query signal, or if you handle that interaction in a different way.

curl --request POST \
  --url https://SIGNAL_STORE_ID.applications.lucidworks.com/retail/signals/query \
  --header 'Content-Type: application/json' \
  --data '[
  {
    "timestamp": 1744305500000,
    "visitorId": "abcc8e25-d30f-2212-9f60-9b45a71453cf",
    "sessionId": "41a50e2-8e32-4674-5429-e1450dfdbb14",
    "queryId": "3be88d22-1c74-44fd-b3a1-6d22078dfed4",
    "ipAddress": "111.222.333",
    "searchTerms": "silver french door bottom freezer refrigerator",
    "productDetails": [
      {
        "product": {
          "productId": "1234567",
          "currencyCode": "USD",
          "price": 2592,
          "title": "Silver french door bottom freezer 27.4 cu ft refrigerator",
          "imageuri": "https://example.com/images/refrigerators/silver/bottomfreezer/1234567.jpg"
        },
        "quantity": 0
      }
    ],
    "sourceId": "string",
    "uri": "https://example.com/refrigerators/silver/bottomfreezer?facet=appliances"
  }
]'
