esri:heatmap
Table of Contents
Description
The heatmap directive
Usage
as element:
<esri:heatmap
response="{string}"
facet-name="{string}"
[height="{string}"]
[width="{string}"]
[basemap="{string}"]>
</esri:heatmap>Directive info
-
This directive creates new scope.
Parameters
| Param | Type | Details |
|---|---|---|
response |
string |
Name of the response. |
facet-name |
string |
Facet containing the data. |
height (optional) |
string |
The height of the map container. Default is 400px. |
width (optional) |
string |
The width of the map container. Default is 100%. |
basemap (optional) |
string |
The map to use to display the points on. Default: topo - Esri options |

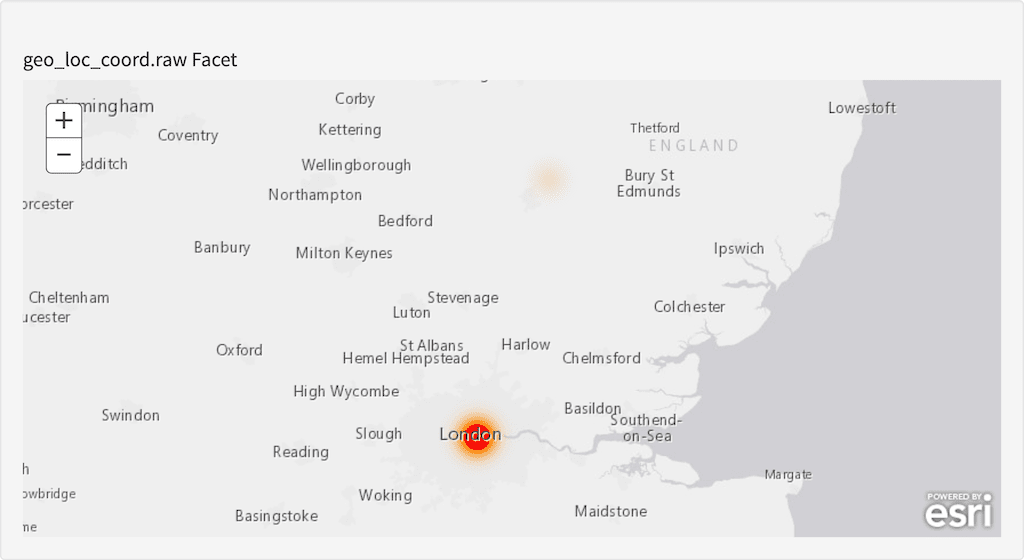

Example
Source
<h3 id="example_geo_loc_coordraw-facet">geo_loc_coord.raw Facet</h3>
<esri:heatmap response="response" facet-name="geo_loc_coord.raw" basemap="gray"></esri:heatmap>angular.module('lightning')
.controller('ExampleController', ['$scope','$timeout', function($scope,$timeout) {
$scope.response = {
page: 2,
query: {
rpp: 50
},
facets: {
heat: {
filters: [
{
val: '37.770090, -122.408904',
count: 1,
},
{
val: '37.782745, -122.444586',
count: 1,
},
{
val: '37.782842, -122.443688',
count: 1,
},
{
val: '37.782919, -122.442815',
count: 1,
},
{
val: '37.782992, -122.442112',
count: 1,
},
{
val: '37.783100, -122.441461',
count: 1,
},
{
val: '37.783206, -122.440829',
count: 1,
},
{
val: '37.783273, -122.440324',
count: 1,
},
{
val: '37.783316, -122.440023',
count: 1,
},
{
val: '37.783357, -122.439794',
count: 1,
},
{
val: '37.783371, -122.439687',
count: 1,
},
{
val: '37.783368, -122.439666',
count: 1,
},
]
},
"geo_loc_coord.raw": {
"id": "geo_loc_coord.raw",
"field": "geo_loc_coord.raw",
"filters": [{
"field": "geo_loc_coord.raw",
"count": 39,
"facts": {},
"val": "51.4964, -0.1224",
"rel": []
}, {
"field": "geo_loc_coord.raw",
"count": 3,
"facts": {},
"val": "52.2599, 0.2288",
"rel": []
}
],
"params": {},
"display": "geo_loc_coord.raw",
"max-count": 39.0,
"min-count": 0.0,
"sum-of-counts": 42.0
},
},
results: []
}
}]);
